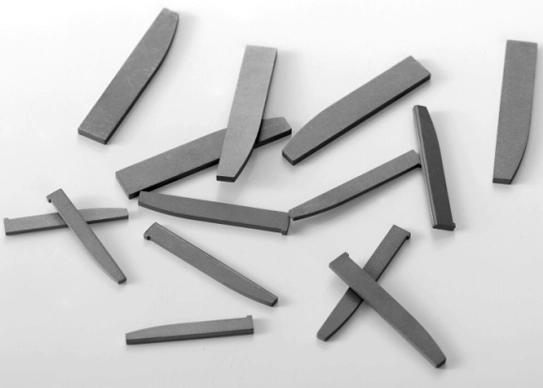

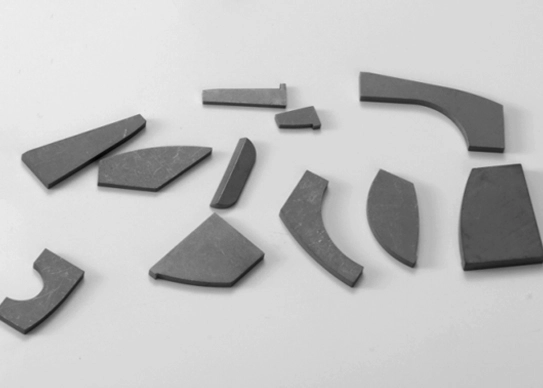

Our carbide blanks for router cutters are built to provide exceptional performance in woodworking and other material cutting applications. With high wear resistance and precise dimensional accuracy, these blanks are perfect for producing high-quality router cutters that deliver clean and efficient cuts in various materials.

Specification of Blanks for Router Cutters

Specification of Blanks for Router Cutters



Blanks for Router Cutters

 

Grades	Binder %	Grain Size	Density	Hardness		T.R.S	KIC	USA Code	ISO Code
Grades	Binder %	Grain Size	g/cm³	HRA	HV10	N/mm²	Mpa.m^1/2	USA Code	ISO Code
UH5	3.0	Ultrafine	15.15	94.3	2120	2600	6.9	C4	K01
MH3	3.3	Ultrafine	15.1	94.6	2175	2400	6.9	C4	K01
MH5	4.8	Sub-micron	14.95	94.1	2070	2400	7.4	C4	K05
MH6	5.0	Sub-micron	14.95	93.6	1950	2800	8.5	C3	K10
CK10X	6.0	Mediumfine	14.9	91.3	1530	2100	11.8	C3	K10
CK20	8.0	Mediumfine	14.7	90.2	1390	2500	14	C2	K20

Grade	Chipboard	MDF&HDF	Solid Wood	Soft Wood
UH5	★★★★	★★★★
MH3	★★★★	★★★★
MH5	★★★	★★★
MH6	★★★	★★	★★★★
CF10			★★★	★★★★
CK10			★★	★★★

★Moderate

★★OK

★★★Very good

★★★★Excellent

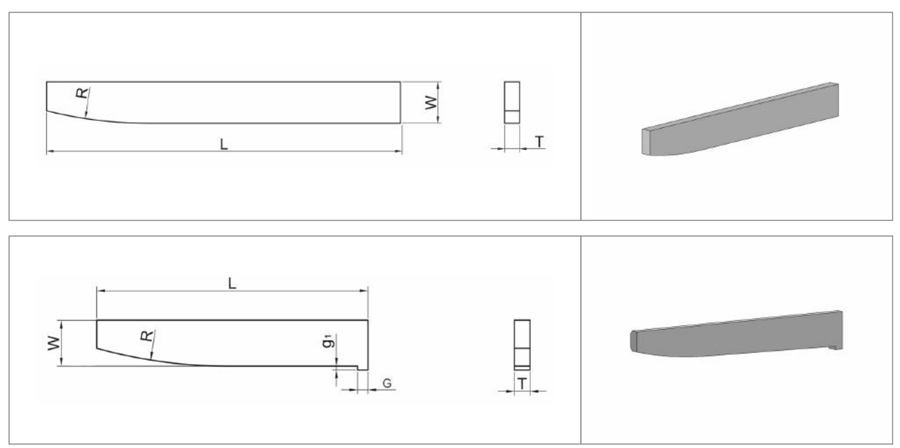

Type	L	W	R
Type	mm	mm	mm
TX2.1X20.2-R32	20.2	2.1	32.0
TX2.5X20.3-R32	20.3	2.5	32.0
TX3.0X20.5-R32	20.5	3.0	32.0
TX3.3X25-R32	25.0	3.3	32.0
TX3.0X30-R37.5	30.0	3.0	37.5
TX3.0X30.5-R32	30.5	3.0	32.0
TX4.0X30.5-R31.5	30.5	4.0	31.5
TX5.3X30.5-R31.5	30.5	5.3	31.5
TX8.0X30.5-R31.5	30.5	8.0	31.5
TX3.35X31-R32	31.0	3.4	32.0
TX4.0X31-R31.5	31.0	4.0	31.5
TX4.3X31-R31.5	31.0	4.3	31.5
TX5.0X31-R37.5	31.0	5.0	37.5
TX5.5X31-R37.5	31.0	5.5	37.5
TX6X31-R37.5	31.0	6.0	37.5
TX7.0X31-R37	31.0	7.0	37.0
TX8.0X31-R37	31.0	8.0	37.0
TX3.5X35.5-R37.5	35.5	3.5	37.5
TX4.3X38.1-R31.5	38.1	4.3	31.5
TX3.4X38.2-R32	38.2	3.4	32.0
TX3.2X38.5-R37	38.5	3.2	37.0
TX4.0X50.8-R37.5	50.8	4.0	37.5
TX4.2X63.5-R32	63.5	4.2	32.0
TX4.3X76.2-R32	76.2	4.3	32.0

Type	L	W	R	GXg1
Type	mm	mm	mm	mm
TX2.7X20.8-R37.5-G	20.8	2.7	37.5	0.8X0.3
TX3.5X20.8-R37.5-G	20.8	3.5	37.5	0.8X0.3
TX3.0X21.8-R37.5-G	21.8	3.0	37.5	0.8X0.3
TX2.7X22.8-R37.5-G	22.8	2.7	37.5	0.8X0.3
TX3.0X25.8-R37.5-G	25.8	3.0	37.5	0.8X0.3
TX3.5X25.8-R37.5-G	25.8	3.5	37.5	0.8X0.3
TX3.8X26-R37.5-G	26.0	3.8	37.5	1.6X0.3
TX3.0X27.8-R37.5-G	27.8	3.0	37.5	0.8X0.3
TX3.0X30.8-R37.5-G	30.8	3.0	37.5	0.8X0.3
TX3.5X30.8-R37.5-G	30.8	3.5	37.5	0.8X0.3
TX4.5X30.8-R37.5-G	30.8	4.5	37.5	0.8X0.3
TX4.3X39-R37.5-G	39.0	4.3	37.5	1.5X0.3
TX4.3X51.5-R37.5-G	51.5	4.3	37.5	1.5X0.3
