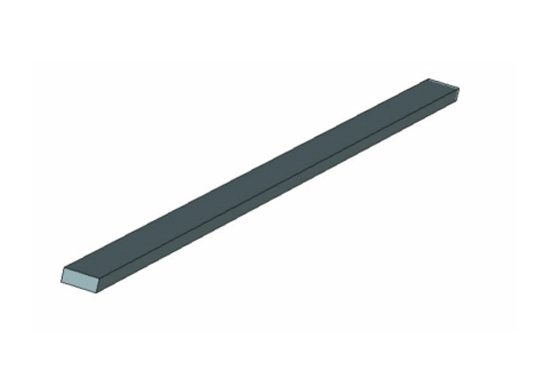

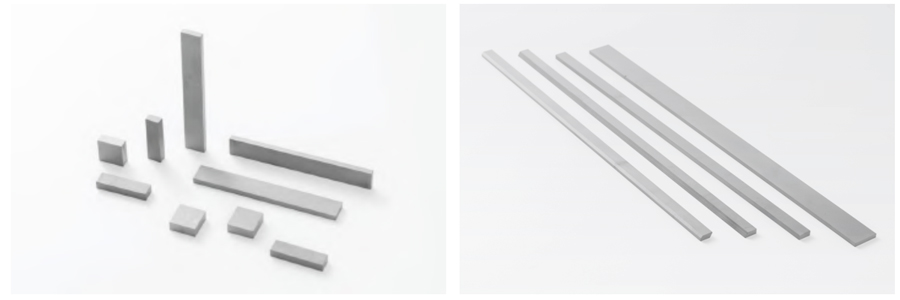

Carbide Strips

PDF Download Get a Quote

CYC's carbide strips are versatile and durable, ideal for wear parts and cutting tools in various industries. These strips provide excellent toughness and wear resistance, ensuring a longer service life and reliable performance. Whether for industrial knives, blades, or other cutting tools, our carbide strips deliver the durability and precision required for demanding applications.

Specification of Carbide Strips



Carbide Strips

 

Grades	Binder %	Grain Size	Density	Hardness		T.R.S	KIC	USA Code	ISO Code
Grades	Binder %	Grain Size	g/cm3	HRA	HV10	N/mm2	Mpa.m1/2	USA Code	ISO Code
MH6	5.0	Sub-micron	14.95	93.6	1950	2800	8.5	C3	K10
MH7	6	Sub-micron	14.85	93.1	1840	3600	8.5	C3	K10
MH8	8	Sub-micron	14.65	92.4	1700	3000	9.5	C3	K20
MH10	10	Sub-micron	14.45	91.8	1600	3800	11	C2	K30
FCK10X	6	Mediumfine	14.9	91.3	1530	2100	11.8	C3	K10
CK20C	8	Mediumfine	14.7	90.2	1390	2500	14	C2	K20
K30	9	Mediumfine	14.6	89.8	1340	2600	14.3	C1	K30
CK301	7.8	Medium	14.8	89	1270	2250	19.9	C1	K30
CF10	6	Fine	14.9	92	1630	3000	9.3	C3	K10
CF30	10	Fine	14.45	91.2	1520	3300	11.8	C1	K30

Grade	Chipboard	HDF	Hardwood	Soft Wood
MH6	★★★★
MH7	★★★★
MH8	★★★★
MH10F		★★★★	★★★
CK10			★★★
CK20			★★★	★★★★

★Moderate

★★OK

★★★Very good

★★★★Excellent

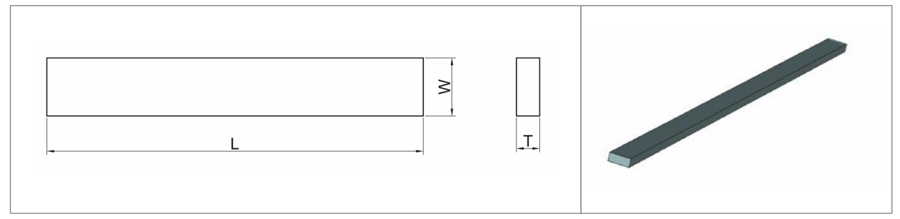

Specification of Carbide Strips



Carbide Strips-S Type

 

Specification of Carbide Strips-S Type

Dimension (mm)			Dimension (mm)
L	W	T	L	W	T
310	4	1.5~4.0	320	4	1.5~4.0
310	6	1.5~6.0	320	6	1.5~6.0
310	8	1.5~8.0	320	8	1.5~8.0
310	10	1.5~8.0	320	10	1.5~10.0
310	12	1.5~8.0	320	12	1.5~10.0
310	14	1.5~8.0	320	14	1.5~8.0
310	15	1.5~10.0	320	15	1.5~8.0
310	16	1.5~8.0	320	16	1.5~8.0
310	18	1.5~8.0	320	18	1.5~8.0
310	20	1.5~8.0	320	20	1.5~8.0
310	24	1.5~8.0	320	25	1.5~12.0
310	25	1.5~8.0	320	28	1.5~8.0
310	28	1.5~8.0	320	30	1.5~8.0
310	30	1.5~8.0	320	32	2.0~8.0
310	45	3.0~12.0	320	34	2.0~8.0
310	50	2.0~8.0	320	40	2.0~8.0

Dimension (mm)
L	W	T
330	3	1.5~3.0
330	4	1.5~4.0
330	5	1.5~5.0
330	6	1.5~6.0
330	7	1.5~7.0
330	8	1.5~8.0
330	9	1.5~9.0
330	10	1.5~10.0
330	11	1.5~10.0
330	12	1.5~10.0
330	14	1.5~10.0
330	15	1.5~10.0
330	16	1.5~10.0
330	18	1.5~10.0
330	20	1.5~10.0
330	25	1.5~10.0
330	28	1.5~10.0
330	30	2.0~10.0
330	32	2.0~10.0
330	35	2.0~10.0
330	40	2.0~10.0



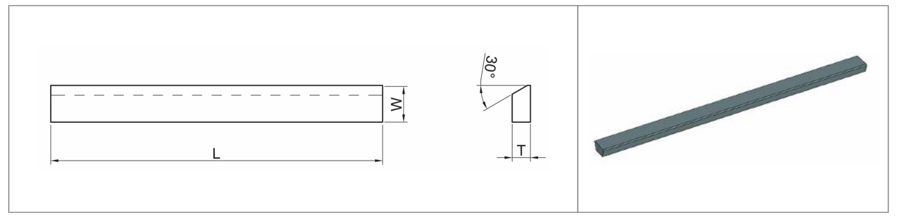

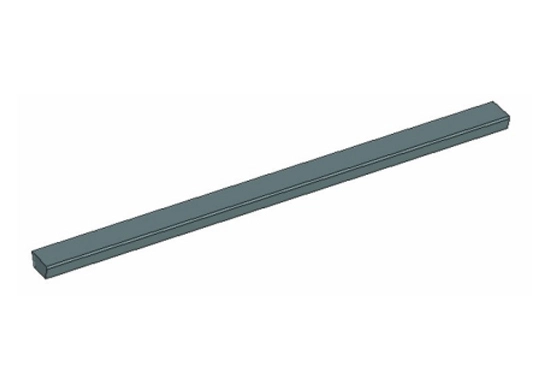

Carbide Strips-SE Type

 

Specification of Carbide Strips-SE Type

Type	Dimension (mm)			Type	Dimension (mm)
Type	L	W	T	Type	L	W	T
SE	310	4	1.5~4.0	SE	320	4	1.5~4.0
SE	310	6	1.5~6.0	SE	320	6	1.5~6.0
SE	310	8	1.5~8.0	SE	320	8	1.5~8.0
SE	310	10	1.5~8.0	SE	320	10	1.5~10.0
SE	310	12	1.5~8.0	SE	320	12	1.5~10.0
SE	310	14	1.5~8.0	SE	320	14	1.5~8.0
SE	310	15	1.5~10.0	SE	320	15	1.5~8.0
SE	310	16	1.5~8.0	SE	320	16	1.5~8.0
SE	310	18	1.5~8.0	SE	320	18	1.5~8.0
SE	310	20	1.5~8.0	SE	320	20	1.5~8.0
SE	310	24	1.5~8.0	SE	320	25	1.5~12.0
SE	310	25	1.5~8.0	SE	320	28	1.5~8.0
SE	310	28	1.5~8.0	SE	320	30	1.5~8.0
SE	310	30	1.5~8.0	SE	320	32	2.0~8.0
SE	310	45	3.0~12.0	SE	320	34	2.0~8.0
SE	310	50	2.0~8.0	SE	320	40	2.0~8.0



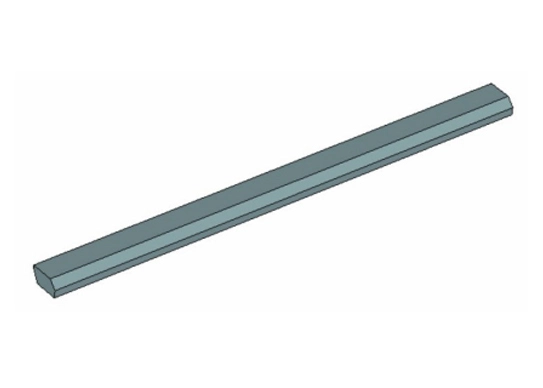

Carbide Strips-SEE Type

 

Specification of Carbide Strips-SEE Type

Type	Dimension (mm)			Type	Dimension (mm)
Type	L	W	T	Type	L	W	T
SEE	310	4	1.5~4.0	SEE	320	4	1.5~4.0
SEE	310	6	1.5~6.0	SEE	320	6	1.5~6.0
SEE	310	8	1.5~8.0	SEE	320	8	1.5~8.0
SEE	310	10	1.5~8.0	SEE	320	10	1.5~10.0
SEE	310	12	1.5~8.0	SEE	320	12	1.5~10.0
SEE	310	14	1.5~8.0	SEE	320	14	1.5~8.0
SEE	310	15	1.5~10.0	SEE	320	15	1.5~8.0
SEE	310	16	1.5~8.0	SEE	320	16	1.5~8.0
SEE	310	18	1.5~8.0	SEE	320	18	1.5~8.0
SEE	310	20	1.5~8.0	SEE	320	20	1.5~8.0
SEE	310	24	1.5~8.0	SEE	320	25	1.5~12.0
SEE	310	25	1.5~8.0	SEE	320	28	1.5~8.0
SEE	310	28	1.5~8.0	SEE	320	30	1.5~8.0
SEE	310	30	1.5~8.0	SEE	320	32	2.0~8.0
SEE	310	45	3.0~12.0	SEE	320	34	2.0~8.0
SEE	310	50	2.0~8.0	SEE	320	40	2.0~8.0



Carbide STB-USA Standard

 

Type	Dimension (inch)
Type	L	W	T
STB212	6"	3/8"	1/16"
STB216	6"	1/2"	1/16"
STB24	6"	1/8"	1/16"
STB26	6"	3/16"	1/16"
STB28	6"	1/4"	1/16"
STB308	6"	1/4"	3/32"
STB310	6"	5/16"	3/32"
STB312	6"	3/8"	3/32"
STB316	6"	1/2"	3/32"
STB320	6"	5/8"	3/32"
STB324	6"	3/4"	3/32"
STB328	6"	7/8"	3/32"
STB332	6"	1"	3/32"
STB336	6"	1~1/8"	3/32"
STB34	6"	1/8"	3/32"
STB340	6"	1~1/4"	3/32"
STB344	6"	1~3/8"	3/32"
STB348	6"	1~1/2"	3/32"
STB356	6"	1~3/4"	3/32"
STB36	6"	3/16"	3/32"
STB38	6"	1/4"	3/32"
STB410	6"	5/16"	1/8"
STB412	6"	3/8"	1/8"
STB416	6"	1/2"	1/8"
STB420	6"	5/8"	1/8"
STB424	6"	3/4"	1/8"
STB428	6"	7/8"	1/8"
STB432	6"	1"	1/8"
STB436	6"	1~1/8"	1/8"
STB448	6"	1~1/2"	1/8"
STB456	6"	1~3/4"	1/8"
STB46	6"	3/16"	1/8"
STB48	6"	1/4"	1/8"
STB512	6"	3/8"	5/32"
STB516	6"	1/2"	5/32"
STB520	6"	5/8"	5/32"
STB524	6"	3/4"	5/32"
STB528	6"	7/8"	5/32"
STB532	6"	1"	5/32"
STB540	6"	1~1/4"	5/32"
STB564	6"	2"	5/32"
STB610	6"	5/16"	3/16"
STB612	6"	3/8"	3/16"
STB616	6"	1/2"	3/16"
STB620	6"	5/8"	3/16"
STB624	6"	3/4"	3/16"
STB628	6"	7/8"	3/16"
STB632	6"	1"	3/16"
STB640	6"	1~1/4"	3/16"
STB648	6"	1~1/2"	3/16"
STB68	6"	1/4"	3/16"
STB816	6"	1/2"	1/4"
STB820	6"	5/8"	1/4"
STB824	6"	3/4"	1/4"
STB832	6"	1"	1/4"
