Cermet Turning Inserts

Name: Cermet Turning Inserts
Brand: CY CARBIDE MFG. CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

Question



Cermet Turning Inserts

 

Answer 1

Shape	Type	Basic Dimension (mm)					PVD
Shape	Type	L	IC	S	d	Re	CMT55	CMT80A	CP80TM
	CNMG120404-MM	12	12.7	4.76	5.16	0.4	●	●	●
	CNMG120408-MM	12	12.7	4.76	5.16	0.8	●	●	●
	CNMG120412-MM	12	12.7	4.76	5.16	1.2	●	●	●

	DNMG110404-MM	11	9.525	4.76	3.81	0.4	○	●	●
	DNMG110408-MM	11	9.525	4.76	3.81	0.8	○	●	●
	DNMG150404-MM	15	12.7	4.76	5.16	0.4	○	●	●
	DNMG150408-MM	15	12.7	4.76	5.16	0.8	○	●	●
	DNMG150412-MM	15	12.7	4.76	5.16	1.2	○	●	●
	DNMG150604-MM	15	12.7	6.35	5.16	0.4	○	●	●
	DNMG150608-MM	15	12.7	6.35	5.16	0.8	○	●	●

	SNMG120404-MM	12	12.7	4.76	5.16	0.4	○	●	●
	SNMG120408-MM	12	12.7	4.76	5.16	0.8	○	●	●
	SNMG120412-MM	12	12.7	4.76	5.16	1.2	○	●	●

	TNMG160404-MM	16	9.525	4.76	3.81	0.4	●	●	●
	TNMG160408-MM	16	9.525	4.76	3.81	0.8	●	●	●
	TNMG160412-MM	16	9.525	4.76	3.81	1.2	●	●	●

	VNMG160404-MM	16	9.525	4.76	3.81	0.4	○	●	●
	VNMG160408-MM	16	9.525	4.76	3.81	0.8	○	●	●
	VNMG160412-MM	16	9.525	4.76	3.81	1.2	○	●	●

	WNMG080404-MM	8	12.7	4.76	5.16	0.4	●	●	●
	WNMG080408-MM	8	12.7	4.76	5.16	0.8	●	●	●
	WNMG080412-MM	8	12.7	4.76	5.16	1.2	●	●	●

	CCMT060204-MM	6	6.35	2.38	2.8	0.4	○	●	●
	CCMT060208-MM	6	6.35	2.38	2.8	0.8	○	●	●
	CCMT09T304-MM	9	9.525	3.97	4.4	0.4	○	●	●
	CCMT09T308-MM	9	9.525	3.97	4.4	0.8	○	●	●
	CCMT120404-MM	12	12.7	4.76	5.16	0.4	○	●	●
	CCMT120408-MM	12	12.7	4.76	5.16	0.8	○	●	●
	CCMT120412-MM	12	12.7	4.76	5.16	1.2	○	●	●

	DCMT070204-MM	7	6.35	2.38	2.8	0.4	○	●	●
	DCMT070208-MM	7	6.35	2.38	2.8	0.8	○	●	●
	DCMT11T304-MM	11	9.525	3.97	4.4	0.4	○	●	●
	DCMT11T308-MM	11	9.525	3.97	4.4	0.8	○	●	●
	DCMT11T312-MM	11	9.525	3.97	4.4	1.2	○	●	●

	SCMT09T304-MM	9	9.525	3.97	4.4	0.4	●	●	●
	SCMT09T308-MM	9	9.525	3.97	4.4	0.8	●	●	●
	SCMT120404-MM	12	12.7	4.76	5.56	0.4	●	●	●
	SCMT120408-MM	12	12.7	4.76	5.56	0.8	●	●	●
	SCMT120412-MM	12	12.7	4.76	5.56	1.2	●	●	●

	TCMT110204-MM	11	6.35	2.38	2.8	0.4	●	●	●
	TCMT110208-MM	11	6.35	2.38	2.8	0.8	●	●	●
	TCMT16T304-MM	16	9.525	3.97	4.4	0.4	●	●	●
	TCMT16T308-MM	16	9.525	3.97	4.4	0.8	●	●	●

	VCMT110304-MM	11	6.35	3.18	2.8	0.4	●	●	●
	VCMT110308-MM	11	6.35	3.18	2.8	0.8	●	●	●
	VBMT160404-MM	16	9.525	4.76	4.4	0.4	●	●	●
	VBMT160408-MM	16	9.525	4.76	4.4	0.8	●	●	●
	VBMT160412-MM	16	9.525	4.76	4.4	1.2	●	●	●

● Running Stock ○ Make-to-order

Cermet Turning Inserts

Specification of Cermet Turning Inserts

Cermet Turning Inserts

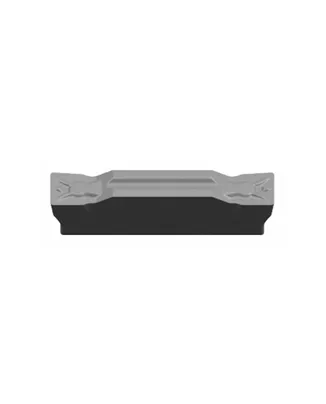

Related Cermet Inserts
