Inserts for Rock Drilling

Name: Inserts for Rock Drilling
Brand: CY CARBIDE MFG. CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

PDF Download Get a Quote

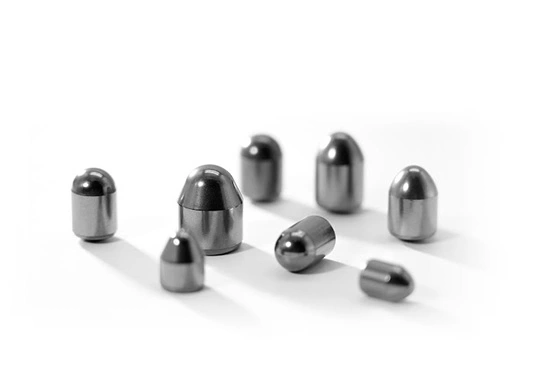

Our carbide inserts for rock drilling are engineered for extreme hardness and toughness, making them perfect for drilling in tough rock formations. Designed to withstand high-impact forces, these inserts provide long-lasting performance and high drilling efficiency. CYC’s rock drilling inserts are the ideal choice for mining, construction, and infrastructure projects.

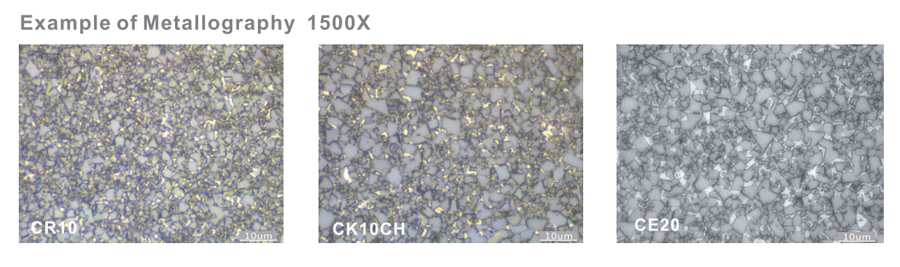

Specification of Inserts for Rock Drilling



Inserts for Rock Drilling

 

Grades	Binder %	Grain Size	Density	Hardness		T.R.S
Grades	Binder %	Grain Size	g/cm³	HRA	HV30	N/mm²
CL10	6.0	Medium	14.90	90.8	1450	2800
CL10	Suitable for high air pressure DTH/TH drill bits on hard and extra hard rock formations
CR10	6.0	Medium	14.85	90.4	1420	2800
CR10	Suitable for high air pressure DTH drill bits on hard rock formations.
CK10CH	6.5	Medium	14.80	90.2	1390	2600
CK10CH	Suitable for low air pressure DTH/TH Drill Bits on medium soft formations and small size inserts for Tapered Drill Bits on medium hard rock formations
CE20	8.0	Coarse	14.70	89.2	1260	2800
CE20	Suitable for welded DHT drill bit on medium-soft rock formations

Specification of Inserts for Rock Drilling



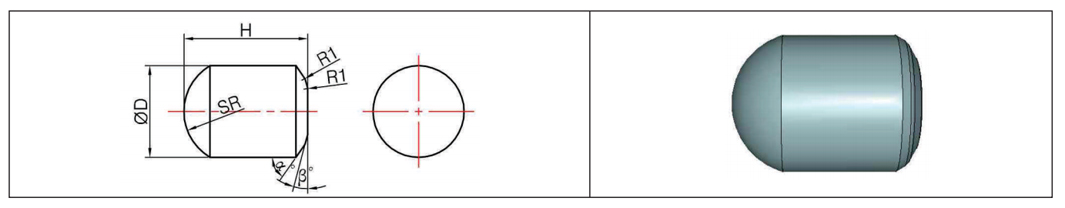

Hemispherical Shaped lnserts

 

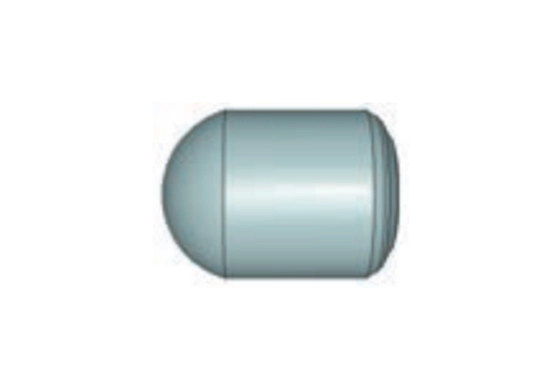

Hemispherical Shaped Inserts

TYPE	D	H	SR
BQ0809	8.2	9.0	4.2
BQ0812	8.2	12.0	4.2
BQ0813	8.2	13.3	4.4
BQ0913	9.2	13.5	4.7
BQ0914	9.2	14.0	5.0
BQ0915	9.2	15.0	5.0
BQ1014	10.2	14.0	5.5
BQ1015	10.2	15.0	5.5
BQ1016	10.2	16.3	5.5
BQ1017	10.2	17.3	5.5
BQ1019	10.2	19.0	5.5
BQ1112	11.3	12.7	5.7
BQ1116	11.3	16.0	6.0
BQ1117	11.3	17.0	6.0
BQ1119	11.3	19.0	6.0
BQ1216	12.3	16.4	6.2
BQ1217	12.3	17.1	6.6
BQ1218	12.3	18.0	6.6
BQ1219	12.3	19.0	6.6
BQ1222	12.3	22.2	6.6
BQ1318	13.3	18.0	6.7
BQ1319	13.3	19.4	6.7
BQ1320	13.3	20.0	7.0
BQ1322	13.3	22.0	7.0
BQ1420	14.3	20.0	7.7
BQ1422	14.3	22.2	7.7
BQ1423	14.3	23.0	7.7
BQ1621	16.3	21.0	8.2
BQ1624	16.3	24.0	8.8
BQ1628	16.3	28.0	8.8
BQ1726	17.3	26.0	8.8
BQ1825	18.3	25.0	9.15
BQ1826	18.3	26.0	9.15
BQ1923	19.4	23.1	10.0
BQ1928	19.4	28.6	10.0
BQ2028	20.4	28.0	10.0



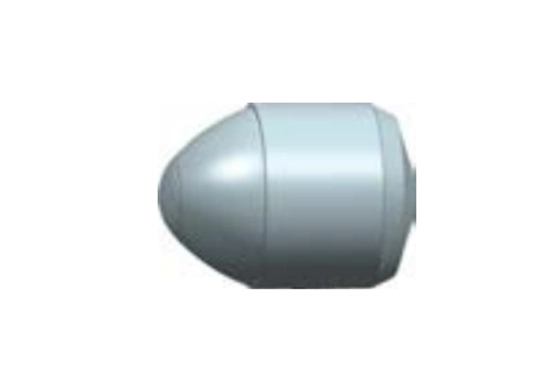

Parabolic Shaped lnserts

 

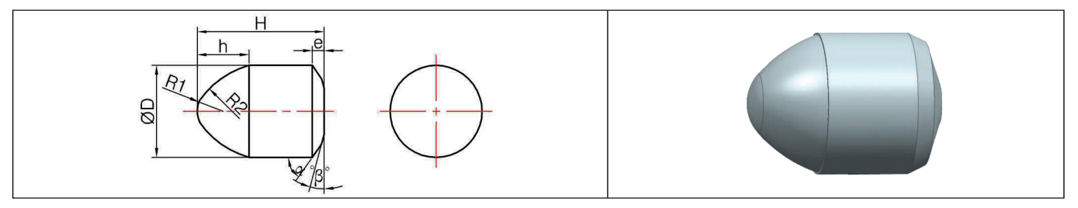

Technical Drawing of Parabolic Shaped Inserts

TYPE	D	H
BP0711	7.2	11.0
BP0812	8.2	12.0
BPO913	9.2	13.5
BP0914	9.2	14.5
BPO915	9.2	15.0
BP1015	10.2	15.0
BP1016	10.2	16.0
BP1017	10.2	17.0
BP1018	10.2	18.0
BP1114	11.3	14.9
BP1117	11.3	17.5
BP1120	11.3	20.0
BP1221	12.3	21.7
BP1218	12.3	18.0
BP1219	12.3	19.0
BP1221	12.3	21.0
BP1321	13.3	21.0
BP1323	13.3	23.5
BP1420	14.3	20.0
BP1422	14.3	22.0
BP1423	14.3	23.0
BP1425	14.3	25.0
BP1426	14.3	26.0
BP1625	16.3	25.8
BP1628	16.3	28.0
BP1632	16.3	32.0



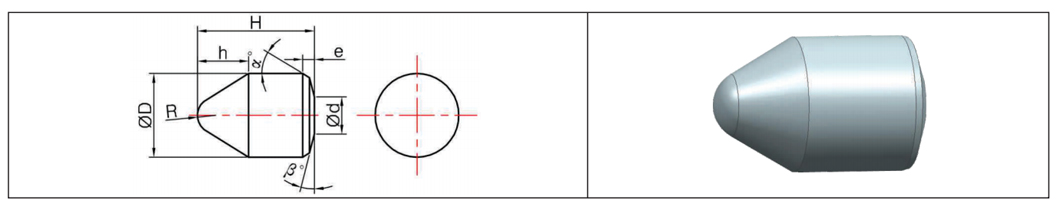

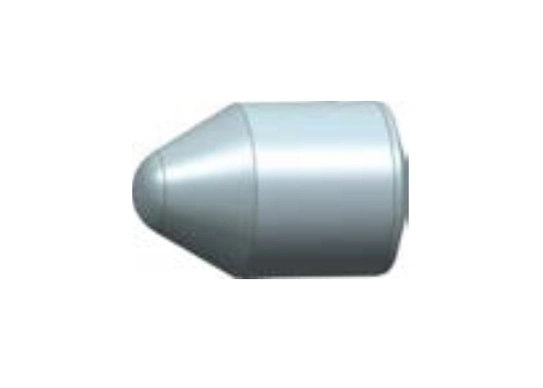

Conical Shaped lnserts

 

TYPE	D	H
BC0709	7.2	9.7
BC0711	7.2	11.0
BC0712	7.2	12.7
BC0811	8.2	11.4
BC0813	8.2	13.0
BC0913	9.2	13.0
BC0914	9.2	14.0
BC0915	9.2	15.5
BC1015	10.2	15.5
BC1016	10.2	16.5
BC1017	10.2	17.0
BC1116	11.3	16.0
BC1118	11.3	18.5
BC1119	11.3	19.3
BC1120	11.3	20.6
BC1219	12.3	19.5
BC1220	12.3	20.0
BC1223	12.3	23.0
BC1317	13.3	17.4
BC1318	13.3	18.51
BC1417	14.3	17.5
BC1420	14.3	20.0
BC1424	14.3	24.0
BC1521	15.3	21.0
BC1625	16.3	25.0
BC1628	16.3	28.0
