For milling high-hardness materials, CYCT’s inserts are designed to high wear-resistance and high heat-resistance. With exceptional wear resistance and toughness, these inserts provide consistent cutting performance, improving tool life and reducing downtime in demanding milling operations.
| Shape | Type | Basic Dimension (mm) | CVD Grade | ||||||
| L | IC | S | d | Re | CA5105 | CA5120 | CK6020 | ||

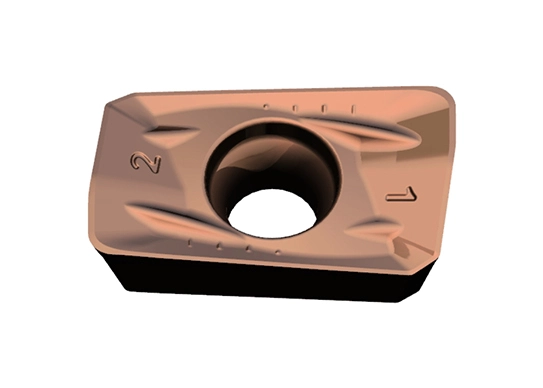

 | APMT1135PDER-CM | 11.25 | 6.26 | 3.5 | 2.8 | 0.8 | ● | ● | ● |
 | APMT1604PDER-CM | 17.44 | 9.32 | 5.2 | 4.4 | 0.8 | ● | ● | ● |

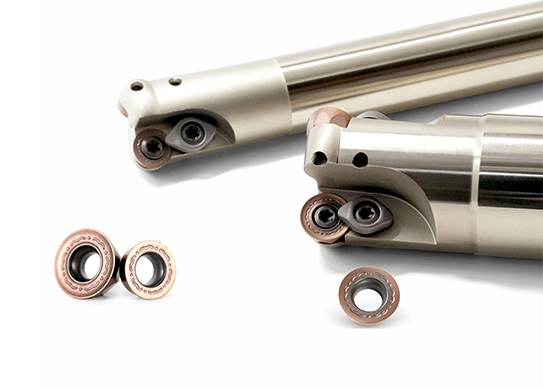

 | RPMT1003MO-CM | 10 | 3.18 | 4.6 | 5 | ● | ● | ● | |
 | RPMT1204MO-CM | 12 | 4.76 | 4.4 | 6 | ● | ● | ● | |
 | RPMT100T3 | 10 | 3.97 | 4 | 5 | ● | ● | ● | |
 | RPMT1204MO-MR | 12 | 4.76 | 4.45 | 6 | ● | ● | ● | |
 | RPMT1604MO-MM | 16 | 4.76 | 5.6 | 8 | ● | ● | ● | |
 | ROMX2006MOT | 20 | 6.35 | 6.5 | 10 | ● | ● | ● | |
 | XNMU060508 | 6 | 13 | 5.56 | 4.32 | 0.8 | ● | ● | ● |

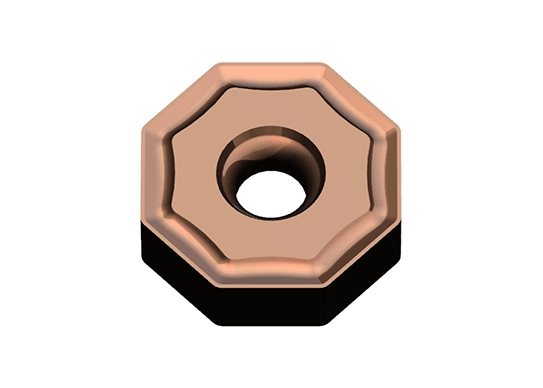

 | ONGU050403-CR | 5 | 12.7 | 4.76 | 4.4 | 0.3 | ○ | ● | ● |
| ONMUO60408-CR | 6 | 15.875 | 4.9 | 4.35 | 0.8 | ○ | ● | ● | |
| ONGU080508-CR | 8 | 20.2 | 5.8 | 5.4 | 0.8 | ○ | ● | ● | |
 | ODMT0605ANN-CR | 6 | 15.875 | 5.56 | 5.5 | 0.8 | ● | ● | ● |
| ODMT050408-CR | 5 | 12.7 | 4.76 | 4.4 | 0.8 | ● | ● | ● | |
 | WNMU060408R-YM | 6 | 10.15 | 4.36 | 4.2 | 0.8 | ● | ● | ● |
| WNMU040304EN-YM | 4 | 6.7 | 3.06 | 3.2 | 0.4 | ● | ● | ● | |

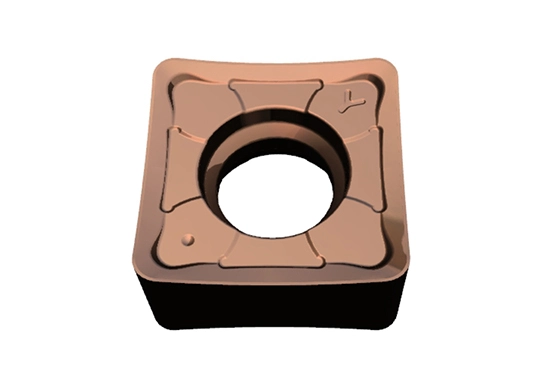

 | SNMU1206ANN-Y | 12 | 12.7 | 5.5 | 5.95 | 0.8 | ● | ● | ● |
 | SNMU120612-Y | 12 | 12.7 | 5.56 | 6 | 1.2 | ● | ● | ● |
● Running Stock
○ Make-to-order
