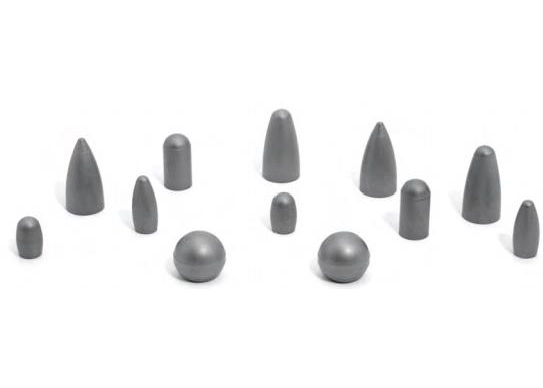

Due to our comprehensive and variable forming solutions,we are able to produce the various type of rods by extrusion pressing, and also the direct pressing of blanks such as rotary bur blanks, disc cutters etc.
Special developed grades upon application, high precision press tools designed built in house, offer tighter tolerance control, which ensures higher performance of products delivered to you.
Optional grade:
Various grades are provided like MH10F/UH12.
Features and applications:

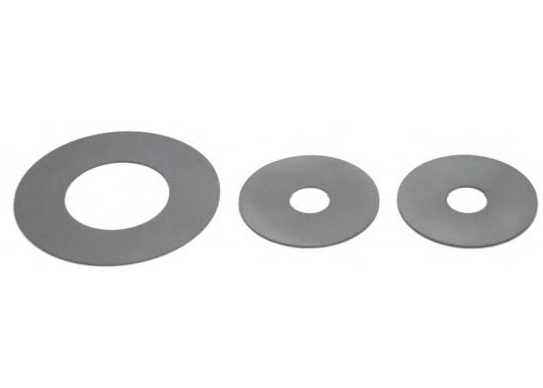

The disc cutter blanks are mainly used for processing non-ferrous metals, steel alloy, stainless steel titanium alloy.
High hardness, easy to be welded, stable performance
It's also used for processing composite material
They can be made for milling groove and cutting tool
Using low press sintering technology, having good densification, and high hardness.
It is suitable for machining of steel, cast iron, stainless steel, heat-resistant steel, Nickel Titanium and so on.
After accurate grinding, it can reach a mirror effect surface.
Grade | Binder | Hardness | T.R.S | Density | Grain Size | lSO Code | |
% | HRA | HV10 | ≥N/mm2 | g/cm3 | |||
CK10H | 6 | 91.3 | 1530 | 2500 | 14.90 | Medium | K10 |

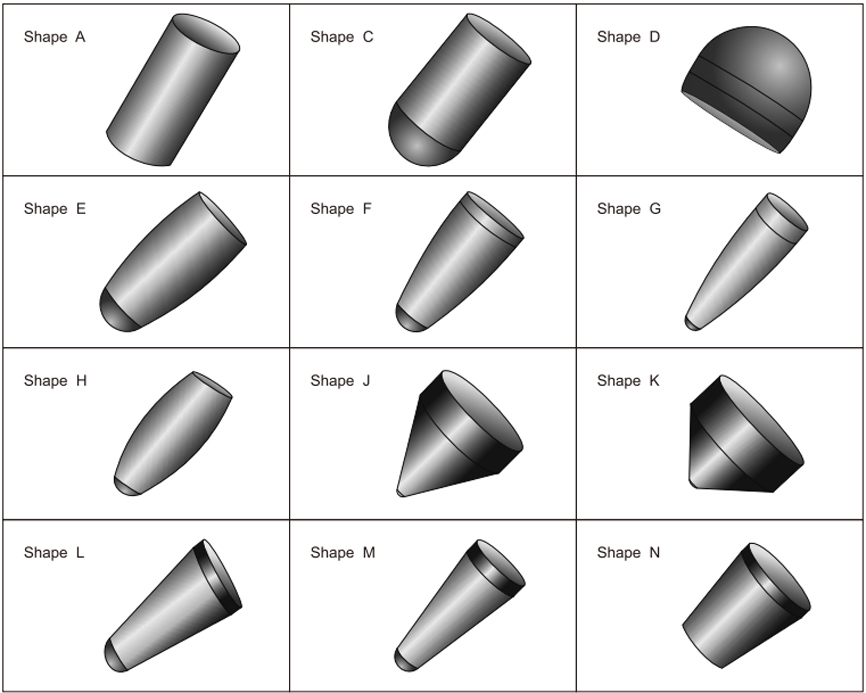

ldeal grade for rotary bur blanks. | |||||||
MH7 | 6 | 93.1 | 1850 | 3600 | 14.85 | Submicron | K10-K20 |

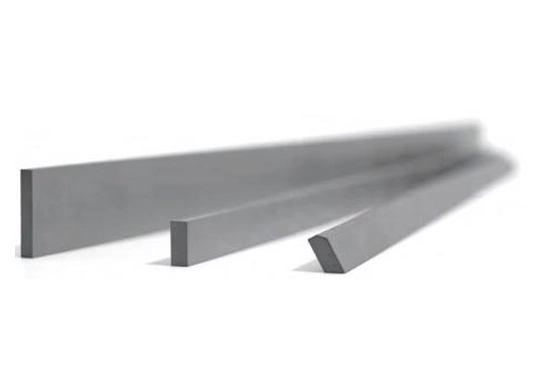

Standard grade for carbide strips.For cutting non-ferrous metals like Cu, Al. | |||||||
MH10F | 10 | 91.8 | 1600 | 3800 | 14.45 | Submicron | K30 |
Standard grade for carbide strips, disc cutters, for machining most kinds of steel. | |||||||
CS43 | 12 | 92.5 | 1720 | 4500 | 14.2 | Ultrafine | K40 |
Standard grade for carbide strips, disc cutters. For machining stainless steel. |
Above data are typical parameters.

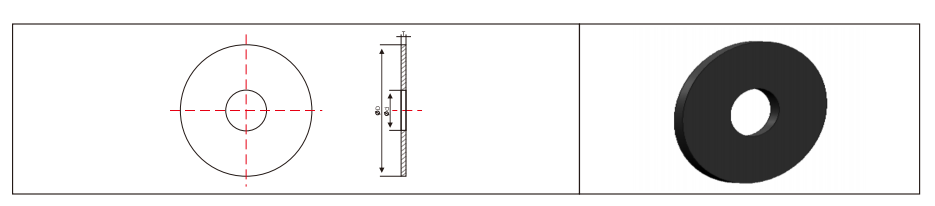

D | Tol. | d | Tol. | T ToL.+0.2~0.3 |
11.0 | 0/+0.5 | 4.0 | -0.3/0 | 0.6~2.5 |
17.2 | 4.5 | |||
19.0 | 7.3 | |||
19.0 | 5.3 | |||
20.0 | 7.3 | 0.6~3.5 | ||
21.5 | 5.3 | |||
30.2 | 5.5 | |||
31.2 | 9.5 | |||
41.2 | 7.3 | 0.6~4.2 | ||
41.2 | 12.2 | |||
41.2 | 14.8 | -0.4/0 | ||
46.0 | 15.0 | |||
51.5 | 11.5 | 0.7~4.5 | ||
51.5 | 15.0 | |||
51.5 | 20.8 | |||
51.5 | 24.5 | |||
54.5 | 15.0 | |||
61.5 | 15.0 | |||
61.5 | 21.4 | |||
61.5 | 24.5 | |||
62.5 | 0/+0.8 | 16.0 | 0.7~4.5 | |
62.5 | 14.7 | |||
62.5 | 15.8 | |||
64.5 | 14.8 | |||
66.5 | 14.5 | |||
66.5 | 15.0 | |||
66.5 | 21.0 | |||
71.5 | 14.5 | 0.7~5.0 | ||
71.5 | 15.3 | |||
71.5 | 24.5 | |||
71.5 | 20.5 | |||
75.5 | 20.5 | |||
75.5 | 15.0 | |||
75.5 | 24.0 | |||
81.5 | 20.5 | |||
81.5 | 24.5 | |||
102.0 | 0/+1.0 | 20.5 | ||
102.0 | 65.0 | -0.7/0 | ||
109.0 | 60.0 | |||
152.0 | 30.5 | -0.5/0 |
Above data are typical parameters.

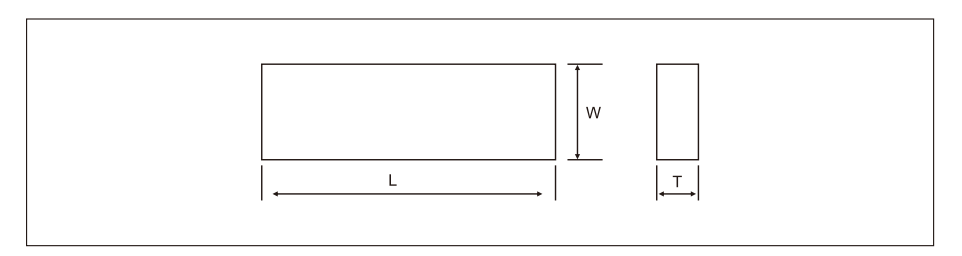

T (mm) | Tol. | W(mm) | Tol. | L(mm) | Tol. |
1.5-4.0 | +0.2/+0.5 | 4.0 | +0.2/+0.7 | 330 | +1.0/+6.0 |
1.5-5.0 | 5.0 | ||||
1.5-6.0 | 6.0 | ||||
1.5-7.0 | 7.0 | ||||
1.5-8.0 | 8.0 | ||||
1.5-10.0 | 10.0 | ||||
1.5-12.0 | 12.0 | ||||
2.0-8.0 | 14.0 | ||||
2.0-8.0 | 15.0 | ||||
2.0-8.0 | 16.0 | ||||
2.0-8.0 | 18.0 | ||||
2.0-8.0 | 20.0 | ||||
2.0-8.0 | 22.0 | ||||
2.0-8.0 | 25.0 | ||||
2.0-8.0 | 26.0 | ||||
2.0-8.0 | 30.0 | ||||
2.0-8.0 | 32.0 | ||||
2.0-8.0 | 35.0 | ||||
2.0-8.0 | 40.0 | ||||
2.0-8.0 | 45.0 |
Above data are typical parameters.
