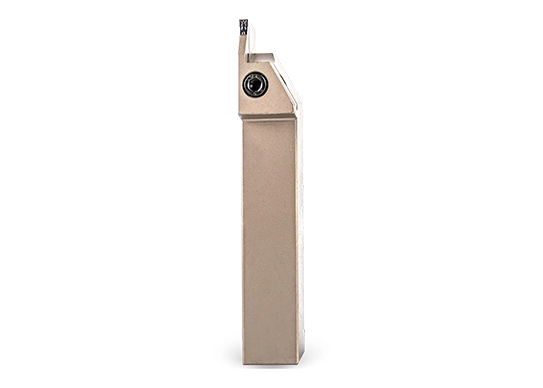

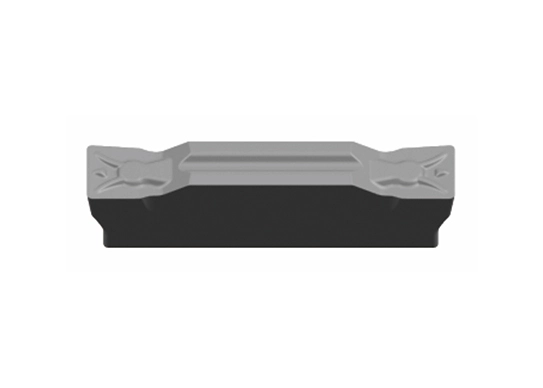

Our parting and grooving inserts offer exceptional precision and performance for parting, grooving, and slotting applications. Designed for stability and control, these inserts ensure clean, accurate cuts with minimal tool wear. CYCT's parting and grooving inserts provide excellent surface finish and long-lasting performance.
Shape | Type | Basic Dimension (mm) | CVD Grade | |||
L | W | S | Re | CM7125A | ||
MGMN200-GM | 16 | 2 | 3.55 | 0.2 | ● | |
MGMN250-GM | 18.5 | 2.5 | 3.57 | 0.2 | ● | |
MGMN300-GM | 21 | 3 | 4.83 | 0.4 | ● | |
MGMN400-GM | 21 | 4 | 4.88 | 0.3 | ● | |
MGMN500-GM | 26 | 5 | 5.8 | 0.4 | ● |
●Running Stock
○Make-to-order
