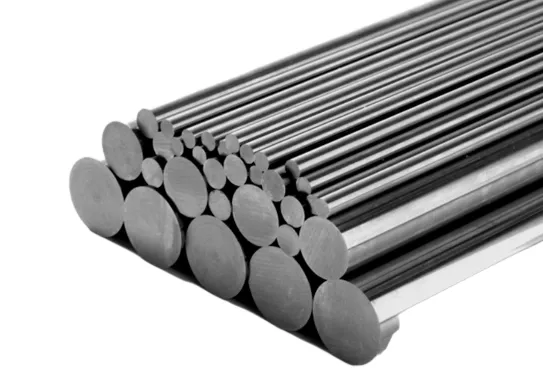

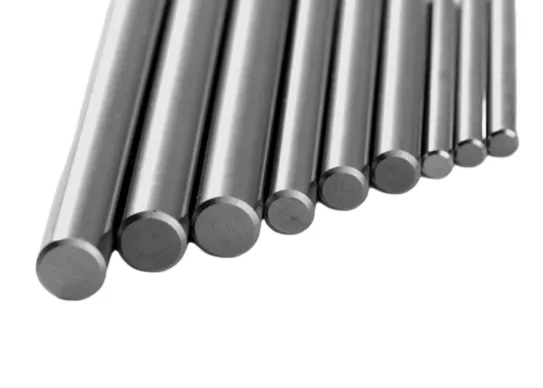

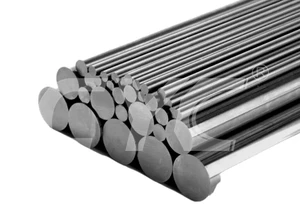

Solid Carbide Rods

PDF Download Get a Quote

CYC's solid carbide rods are the ideal choice for demanding applications requiring exceptional hardness, toughness, and wear resistance. These rods are engineered for high-precision cutting tools, such as end mills, drills, and reamers, ensuring longer tool life and consistent performance. Available in a range of sizes and grades, our solid carbide rods deliver unmatched reliability in the most challenging machining environments.


Specification of Solid Carbide Rods

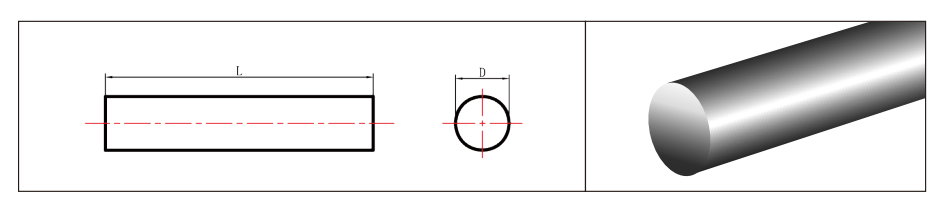

Precision Ground Rod, Random Lengths (Metric Sizes 1mm to 40mm Diameter h6 tolerance)

Solid Carbide Rods


Type: RSM

Metric Sizes 1mm to 40mm Diameter h6 tolerance


ltem No.ODTol. h6LTol.
(mm)(mm)(mm)(mm)
RSM-0100-3300PG10/-0.0063300/+5
RSM-0150-330OPG1.50/-0.0063300/+5
RSM-0200-3300PG20/-0.0063300/+5
RSM-0300-3300PG30/-0.0063300/+5
RSM-0400-3300PG40/-0.0083300/+5
RSM-0500-3300PG50/-0.0083300/+5
RSM-0600-3300PG60/-0.0083300/+5
RSM-0700-3300PG70/-0.0093300/+5
RSM-0800-3300PG80/-0.0093300/+5
RSM-0900-3300PG90/-0.0093300/+5
RSM-1000-3300PG100/-0.0093300/+5
RSM-1100-3300PG110/-0.0113300/+5
RSM-1200-3300PG120/-0.0113300/+5
RSM-1300-3300PG130/-0.0113300/+5
RSM-1400-3300PG140/-0.0113300/+5
RSM-1500-3300PG150/-0.0113300/+5
RSM-1600-3300PG160/-0.0113300/+5
RSM-1700-3300PG170/-0.0113300/+5
RSM-1800-3300PG180/-0.0113300/+5
RSM-1900-3300PG190/-0.0133300/+5
RSM-2000-3300PG200/-0.0133300/+5
RSM-2100-3300PG210/-0.0133300/+5
RSM-2200-3300PG220/-0.0133300/+5
RSM-2300-3300PG230/-0.0133300/+5
RSM-2400-3300PG240/-0.0133300/+5
RSM-2500-3300PG250/-0.0133300/+5
RSM-2600-3300PG260/-0.0133300/+5
RSM-2700-3300PG270/-0.0133300/+5
RSM-2800-3300PG280/-0.0133300/+5
RSM-2900-3300PG290/-0.0133300/+5
RSM-3000-3300PG300/-0.0133300/+5
RSM-3200-3300PG320/-0.0163300/+5
RSM-3400-3300PG340/-0.0163300/+5
RSM-3600-3300PG360/-0.0163300/+5
RSM-3800-3300PG380/-0.0163300/+5
RSM-4000-3300PG400/-0.0163300/+5


  • Above data are typical parameters.

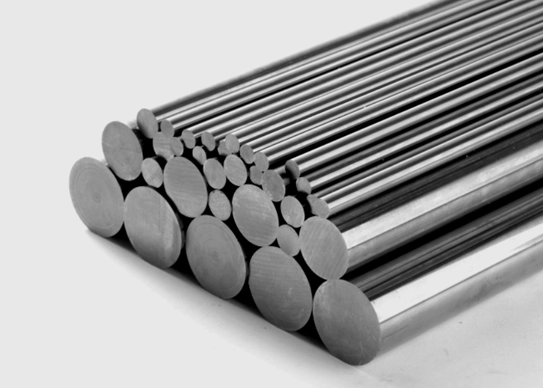

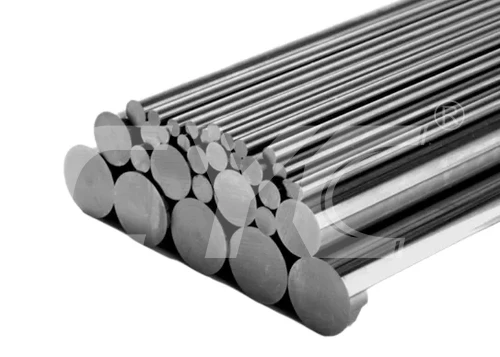

Unground Rod, Random Lengths (Metric Sizes 1mm to 40mm Diameter)

Solid Carbide Rods


Type: RSM

Metric Sizes 1mm to 40mm Diameter



ltem No.ODTol.LTol.
(mm)(mm)(mm)(mm)
RSM-0120-3300UG1.2+0.05/0.33300/+5
RSM-0170-3300UG1.7+0.05/0.33300/+5
RSM-0220-3300UG2.2+0.05/0.33300/+5
RSM-0320-3300UG3.2+0.05/0.33300/+5
RSM-0420-3300UG4.2+0.05/0.33300/+5
RSM-0520-3300UG5.2+0.05/0.33300/+5
RSM-0620-3300UG6.2+0.05/0.33300/+5
RSM-0720-3300UG7.2+0.05/0.33300/+5
RSM-0820-3300UG8.2+0.05/0.33300/+5
RSM-0920-3300UG9.2+0.05/0.33300/+5
RSM-1020-3300UG10.2+0.05/0.33300/+5
RSM-1120-3300UG11.2+0.05/0.33300/+5
RSM-1220-3300UG12.2+0.05/0.33300/+5
RSM-1320-3300UG13.2+0.05/0.33300/+5
RSM-1420-3300UG14.2+0.05/0.33300/+5
RSM-1520-3300UG15.2+0.05/0.33300/+5
RSM-1620-3300UG16.2+0.05/0.33300/+5
RSM-1720-3300UG17.2+0.05/+0.43300/+5
RSM-1820-3300UG18.2+0.05/+0.43300/+5
RSM-1920-3300UG19.2+0.05/+0.43300/+5
RSM-2020-3300UG20.2+0.05/+0.43300/+5
RSM-2120-3300UG21.2+0.05/+0.43300/+5
RSM-2220-3300UG22.2+0.05/+0.43300/+5
RSM-2320-3300UG23.2+0.05/+0.43300/+5
RSM-2420-3300UG24.2+0.05/+0.43300/+5
RSM-2520-3300UG25.2+0.05/+0.43300/+5
RSM-2620-3300UG26.2+0.05/+0.43300/+5
RSM-2720-3300UG27.2+0.05/+0.43300/+5
RSM-2820-3300UG28.2+0.05/+0.43300/+5
RSM-2920-3300UG29.2+0.05/+0.43300/+5
RSM-3020-3300UG30.2+0.05/+0.43300/+5
RSM-3220-3300UG32.2+0.05/+0.43300/+5
RSM-3420-3300UG34.2+0.05/+0.43300/+5
RSM-3620-3300UG36.2+0.05/+0.43300/+5
RSM-3820-3300UG38.2+0.05/+0.43300/+5
RSM-4020-3300UG40.2+0.05/+0.43300/+5



  • Above data are typical parameters.

Precision Ground Rod, Random Lengths (lnch Sizes 1/8)

Solid Carbide Rods


Type: RSI

lnch Sizes 1/8" to 1-1/4" Diameter h6 tolerance


ltem No.ODTol.h6LTol.
(inch)(inch)(inch)(inch)
RSI-01250-1300DG0.1251/80/-0.00031130/+0.25
RSI-01406-1300DG0.1406259/640/-0.00031130/+0.25
RSI-01563-1300DG0.156255/320/-0.00031130/+0.25
RSI-01719-1300DG0.17187511/640/-0.00031130/+0.25
RSI-01875-1300DG0.18753/160/-0.00031130/+0.25
RSI-02031-1300DG0.20312513/640/-0.00031130/+0.25
RSI-02188-1300DG0.218757/320/-0.00031130/+0.25
RSI-02500-1300DG0.251/40/-0.00035130/+0.25
RSI-03125-1300DG0.31255/160/-0.00035130/+0.25
RSI-03750-1300DG0.3753/80/-0.00035130/+0.25
RSI-04375-1300DG0.43757/160/-0.00043130/+0.25
RSI-04688-1300DG0.4687515/320/-0.00043130/+0.25
RSI-05000-1300DG0.51/20/-0.00043130/+0.25
RSI-05625-1300DG0.56259/160/-0.00043130/+0.25
RSI-06250-1300DG0.6255/80/-0.00043130/+0.25
RSI-07500-1300DG0.753/40/-0.00051130/+0.25
RSI-08750-1300DG0.8757/80/-0.00051130/+0.25
RSI-10000-1300DG110/-0.00051130/+0.25
RSI-11250-1300DG1.1251 1/80/-0.00051130/+0.25
RSI-12500-1300DG1.251 1/40/-0.00063130/+0.25


  • Above data are typical parameters.

Unground Rod,Random Lengths (lnch Sizes 1/16, 23/64）

Solid Carbide Rods


Type: RSI

lnch Sizes 1/16" to 11/32" Diameter


ltem No.ODTol.LTol.
(inch)(inch)(inch)(inch)
RSI-00625-1300UG0.06251/16+0.012/+0.02130/+0.25
RSI-00781-1300UG0.0781255/64+0.012/+0.02130/+0.25
RSI-00938-1300UG0.093753/32+0.012/+0.02130/+0.25
RSl-01094-1300UG0.1093757/64+0.012/+0.02130/+0.25
RSI-01250-1300UG0.1251/8+0.012/+0.02130/+0.25
RSI-01406-1300UG0.1406259/64+0.012/+0.02130/+0.25
RSI-01563-1300UG0.156255/32+0.012/+0.02130/+0.25
RSl-01719-1300UG0.17187511/64+0.012/+0.02130/+0.25
RSI-01875-1300UG0.18753/16+0.012/+0.02130/+0.25
RSI-02031-1300UG0.20312513/64+0.012/+0.02130/+0.25
RSl-02188-1300UG0.218757/32+0.012/+0.02130/+0.25
RSI-02344-1300UG0.23437515/64+0.012/+0.02130/+0.25
RSI-02500-1300UG0.251/4+0.012/+0.02130/+0.25
RSI-02656-1300UG0.26562517/64+0.012/+0.02130/+0.25
RSI-02813-1300UG0.281259/32+0.012/+0.02130/+0.25
RSI-02969-1300UG0.29687519/64+0.012/+0.02130/+0.25
RSI-03125-1300UG0.31255/16+0.012/+0.02130/+0.25
RSI-03281-1300UG0.32812521/64+0.012/+0.02130/+0.25
RSI-03438-1300UG0.3437511/32+0.012/+0.02130/+0.25


Type: RSI

lnch Sizes 23/64" to 1" Diameter


ltem   No.ODTol.LTol.
(inch)(inch)(inch)(inch)
RSI-03594-1300UG0.3623/640.012/+0.02130/+0.25
RSI-03750-1300UG0.383/80.012/+0.02130/+0.25
RSI-03906-1300UG0.3925/640.012/+0.02130/+0.25
RSI-04063-1300UG0.4113/320.012/+0.02130/+0.25
RSI-04219-1300UG0.4227/640.012/+0.02130/+0.25
RSI-04375-1300UG0.447/160.012/+0.02130/+0.25
RSI-04531-1300UG0.4529/640.012/+0.02130/+0.25
RSI-04688-1300UG0.4715/320.012/+0.02130/+0.25
RSI-04844-1300UG0.4831/640.012/+0.02130/+0.25
RSI-05000-1300UG0.51/20.012/+0.02130/+0.25
RSI-05313-1300UG0.5317/320.012/+0.02130/+0.25
RSI-05625-1300UG0.569/160.012/+0.02130/+0.25
RSI-06250-1300UG0.635/80.012/+0.02130/+0.25
RSI-06875-1300UG0.6911/160.012/+0.02130/+0.25
RSI-07500-1300UG0.753/40.012/+0.02130/+0.25
RSI-08125-1300UG0.8113/160.012/+0.02130/+0.25
RSI-08750-1300UG0.887/80.012/+0.02130/+0.25
RSI-10000-1300UG110.012/+0.02130/+0.25

  • Above data are typical parameters.

Precision Ground Rod, Cut to Length, With Chamfer (Metric Sizes 3mm to25mm Diameter h6 tolerance)

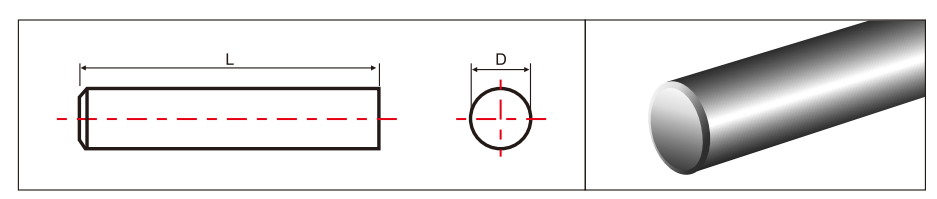

Technical Drawing of Precision Ground Rod, Cut to Length, With Chamfer


Type: RSFM

Metric Sizes 3mm to25mm Diameter h6 tolerance


ltem No.ODTol. h6LTol.c
(mm)(mm)(mm)(mm)(mm)
RSFM-0300-0390PG30/-0.006390/+0.50.3
RSFM-0300-0400PG30/-0.006400/+0.50.3
RSFM-0300-0500PG30/-0.006500/+0.50.3
RSFM-0400-0500PG40/-0.008500/+0.50.4
RSFM-0400-0510PG40/-0.008510/+0.50.4
RSFM-0400-0750PG40/-0.008750/+0.80.4
RSFM-0500-0510PG50/-0.008510/+0.50.4
RSFM-0500-0550PG50/-0.008550/+0.60.4
RSFM-0600-0500PG60/-0.008500/+0.50.6
RSFM-0600-0510PG60/-0.008510/+0.50.6
RSFM-0600-0550PG60/-0.008550/+0.60.6
RSFM-0600-0570PG60/-0.008570/+0.60.6
RSFM-0600-0580PG60/-0.008580/+0.60.6
RSFM-0600-0600PG60/-0.00860O/+0.60.6
RSFM-0600-0630PG60/-0.008630/+O.60.6
RSFM-0600-0700PG60/-0.008700/+0.70.6
RSFM-0600-0750PG60/-0.008750/+0.80.6
RSFM-0600-0800PG60/-0.00880O/+0.80.6
RSFM-0600-1000PG60/-0.0081000/+1.00.6
RSFM-0600-0640PG60/-0.008640/+0.60.6
RSFM-0800-0590PG80/-0.00959O/+0.60.6
RSFM-0800-0630PG80/-0.009630/+0.60.6
RSFM-0800-0640PG80/-0.009640/+0.60.6
RSFM-0800-0750PG80/-0.009750/+0.80.6
RSFM-0800-0800PG80/-0.009800/+0.80.6
RSFM-0800-0900PG80/-0.009900/+0.90.6
RSFM-0800-1000PG80/-0.0091000/+1.00.6
RSFM-1000-067OPG100/-0.009670/+0.70.6
RSFM-1000-070OPG100/-0.009700/+0.70.6
RSFM-1000-0720PG100/-0.009720/+0.70.6
RSFM-1000-0730PG100/-0.009730/+0.70.6
RSFM-1000-0750PG100/-0.009750/+0.80.6
RSFM-1000-0900PG100/-0.009900/+0.90.6
RSFM-1000-1000PG100/-0.0091000/+1.00.6
RSFM-1200-0740PG120/-0.011740/+0.70.8
RSFM-1200-0750PG120/-0.011750/+0.80.8
RSFM-1200-0830PG120/-0.011830/+0.80.8
RSFM-1200-0840PG120/-0.011840/+0.80.8
RSFM-1200-1000PG120/-0.0111000/+1.00.8
RSFM-1200-1200PG120/-0.0111200/+1.20.8
RSFM-1400-0760PG140/-0.011760/+0.80.8
RSFM-1400-0830PG140/-0.011830/+0.80.8
RSFM-1400-0840PG140/-0.011840/+0.80.8
RSFM-1400-0890PG140/-0.011890/+0.90.8
RSFM-1600-0830PG160/-0.011830/+0.80.8
RSFM-1600-0920PG160/-0.011920/+0.90.8
RSFM-1600-0930PG160/-0.011930/+0.90.8
RSFM-1600-1000PG160/-0.0111000/+1.00.8
RSFM-1600-1300PG160/-0.0111300/+1.30.8
RSFM-1800-0850PG180/-0.011850/+0.91
RSFM-1800-0930PG180/-0.011930/+0.91
RSFM-2000-0930PG200/-0.013930/+0.91
RSFM-2000-1000PG200/-0.0131000/+1.01
RSFM-2000-1050PG200/-0.0131050/+1.01
RSFM-2000-1250PG200/-0.0131250/+1.31
RSFM-2000-1500PG200/-0.0131500/+1.51
RSFM-2500-1030PG250/-0.0131030/+1.01.5
RSFM-2500-1500PG250/-0.0131500/+1.51.5

  • Above data are typical parameters.

Precision Ground Rod, Cut to Length, With Chamfer (lnch Sizes 1/8, 5/16, 1/2)

Technical Drawing of Precision Ground Rod, Cut to Length, With Chamfer


Type: RSFI

lnch Sizes 1/8" to 5/16"Diameter h6 tolerance


ltem No.ODTol. h6LTol.c
(inch)(inch)(inch)(inch)(inch)
RSFl-01250-0150DG0.1251/80/-0.000311 1/20/+0.020.015
RSFI-01250-0200DG0.1251/80/-0.0003120/+0.020.015
RSFI-01250-0225DG0.1251/80/-0.000312 1/40/+0.0230.015
RSFI-01250-0250DG0.1251/80/-0.000312 1/20/+0.0250.015
RSFI-01250-0300DG0.1251/80/-0.0003130/+0.030.015
RSFI-01250-0400DG0.1251/80/-0.0003140/+0.040.015
RSFI-01875-0150DG0.18753/160/-0.000311 1/20/+0.020.015
RSFI-01875-0200DG0.18753/160/-0.0003120/+0.020.015
RSFI-01875-0250DG0.18753/160/-0.000312 1/20/+0.0250.015
RSFI-01875-0275DG0.18753/160/-0.000312 3/40/+0.0280.015
RSFI-01875-0300DG0.18753/160/-0.0003130/+0.030.015
RSFI-01875-0400DG0.18753/160/-0.0003140/+0.040.015
RSFI-02500-0150DG0.251/40/-0.000351 1/20/+0.020.015
RSFI-02500-0200DG0.251/40/-0.0003520/+0.020.015
RSFI-02500-0250DG0.251/40/-0.000352 1/20/+0.0250.015
RSFI-02500-0300DG0.251/40/-0.0003530/+0.030.015
RSFI-02500-0325DG0.251/40/-0.000353 1/40/+0.0330.015
RSFI-02500-0350DG0.251/40/-0.000353 1/20/+0.0350.015
RSFI-02500-0400DG0.251/40/-0.0003540/+0.040.015
RSFI-02500-0600DG0.251/40/-0.0003560/+0.060.015
RSFI-03125-0250DG0.31255/160/-0.000352 1/20/+0.0250.015
RSFI-03125-0200DG0.31255/160/-0.0003520/+0.020.015
RSFI-03125-0300DG0.31255/160/-0.0003530/+0.030.015


Type: RSFI

lnch Sizes 5/16" to 1/2" Diameter h6 tolerance


ltem No.ODTol. h6LTol.c
(inch)(inch)(inch)(inch)(inch)
RSFI-03125-0350DG0.31255/160/-0.000353 1/20/+0.0350.015
RSFI-03125-0400DG0.31255/160/-0.0003540/+0.040.015
RSFI-03125-0600DG0.31255/160/-0.0003560/+0.060.015
RSFI-03750-0200DG0.3753/80/-0.0003520/+0.020.015
RSFI-03750-0250DG0.3753/80/-0.000352 1/20/+0.0250.015
RSFI-03750-0300DG0.3753/80/-0.0003530/+0.030.015
RSFI-03750-0350DG0.3753/80/-0.000353 1/20/+0.0350.015
RSFI-03750-0400DG0.3753/80/-0.0003540/+0.040.015
RSFI-03750-0450DG0.3753/80/-0.000354 1/20/+0.0450.015
RSFI-03750-0500DG0.3753/80/-0.0003550/+0.050.015
RSFI-O3750-0600DG0.3753/80/-0.0003560/+0.060.015
RSFI-04375-0250DG0.43757/160/-0.000432 1/20/+0.0250.031
RSFI-04375-0275DG0.43757/160/-0.000432 3/40/+0.0280.031
RSFI-04375-0300DG0.43757/160/-0.0004330/+0.030.031
RSFI-04375-0400DG0.43757/160/-0.0004340/+0.040.031
RSFI-04375-0450DG0.43757/160/-0.000434 1/20/+0.0450.031
RSFI-04375-0600DG0.43757/160/-0.0004360/+0.060.031
RSFI-05000-0250DG0.51/20/-0.000432 1/20/+0.0250.031
RSFI-05000-0300DG0.51/20/-0.0004330/+0.030.031
RSFI-05000-0350DG0.51/20/-0.000433 1/20/+0.0350.031
RSFI-05000-0400DG0.51/20/-0.0004340/+0.040.031
RSFI-05000-0450DG0.51/20/-0.000434 1/20/+0.0450.031
RSFI-05000-0500DG0.51/20/-0.0004350/+0.050.031


Type: RSFI

lnch Sizes 1/2" to 1-1/4" Diameter h6 tolerance


ltem No.ODTol. h6LTol.c
(inch)(inch)(inch)(inch)(inch)
RSFI-05000-0600DG0.51/20/-0.0004360/+0.060.031
RSFI-05625-0350DG0.56259/160/-0.000433 1/20/+0.0350.031
RSFI-05625-0400DG0.56259/160/-0.0004340/+0.040.031
RSFI-05625-0600DG0.56259/160/-0.0004360/+0.060.031
RSFI-06250-0300DG0.6255/80/-0.0004330/+0.030.031
RSFI-06250-0350DG0.6255/80/-0.000433 1/20/+0.0350.031
RSFI-06250-0400DG0.6255/80/-0.0004340/+0.040.031
RSFI-06250-0500DG0.6255/80/-0.0004350/+0.050.031
RSFI-06250-0600DG0.6255/80/-0.0004360/+0.060.031
RSFI-O7500-0300DG0.753/40/-0.0005130/+0.030.031
RSFI-O7500-0400DG0.753/40/-0.0005140/+0.040.031
RSFI-O7500-0500DG0.753/40/-0.0005150/+0.050.031
RSFI-07500-0600DG0.753/40/-0.0005160/+0.060.031
RSFI-08750-0400DG0.8757/80/-0.0005140/+0.040.031
RSFI-10000-0300DG110/-0.0005130/+0.030.031
RSFI-10000-0400DG110/-0.0005140/+0.040.031
RSFI-10000-0450DG110/-0.000514 1/20/+0.0450.031
RSFl-10000-0500DG110/-0.0005150/+0.050.031
RSFl-10000-0600DG110/-0.0005160/+0.060.031
RSFI-12500-0450DG1.251 1/40/-0.000634 1/20/+0.0450.031
RSFI-12500-0600DG1.251 1/40/-0.0006350/+0.060.031

  • Above data are typical parameters.

Hard Materials
Carbide Insert
GET IN TOUCH WITH CY Carbide
GET IN TOUCH WITH CY Carbide

Your Success Starts with a Click: Contact Us Now!

86-400-863-2919
info@cycarbide.com
No.67, Yucheng Rd.(N), Kunshan, Jiangsu, China

Related Carbide Rods

Latest News About CY Carbide
Hard Materials
Carbide Insert
Media
Quick Links
Copyright © CY CARBIDE MFG. CO., LTD. All Rights Reserved.
Sitemap Privacy Policy
Company
Company Profile
Sustainability
Hard Materials
Carbide Rods
Preform
Metalworking
Tips for Power Tools
Sawing Tips
Woodworking
Mining & Construction
Rotary Cutter
EDM Blanks
Die & Mold
Tungsten Carbide Nibs for Cold Heading Dies
Oil & Gas Components
PCD
Cermet
Carbide Insert
Turning Inserts
Milling Inserts
Drilling Inserts
Cermet Inserts
Grade
Carbide Grade
Inserts Grade
Carbide Terminology
Quick Links
News & Press Release
E-catalog
Stock List
Conflict Minerals Statement
Video
Trade Shows & Events
Contact Us
Phone:
86-400-863-2919
E-mail:
info@cycarbide.com
Address:
No.67, Yucheng Rd.(N), Kunshan, Jiangsu, China
COPYRIGHT © CY CARBIDE MFG. CO., LTD. All Rights Reserved.
Sitemap Privacy Policy
