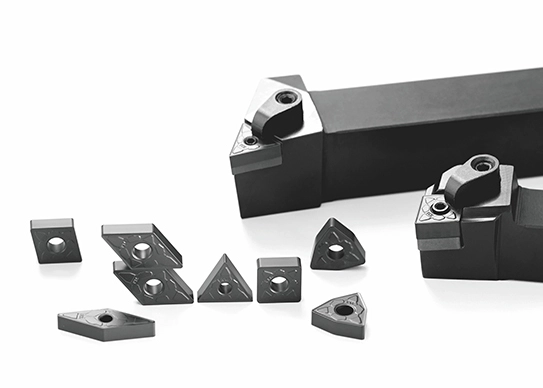

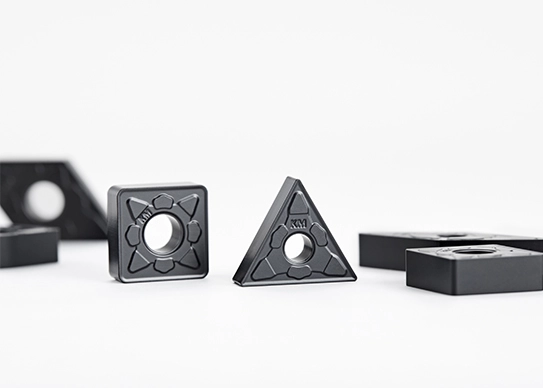

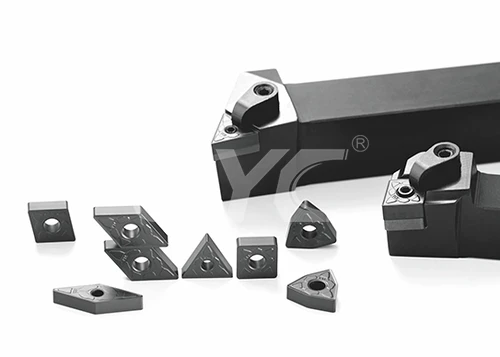

Name: Turning Inserts for Cast Iron
Brand: CY CARBIDE MFG. CO., LTD.
Availability: InStock
Rating: 4.4 (1 reviews)

Specification of Turning Inserts for Cast Iron



Turning Inserts for Cast Iron

 

Shape	Type	Basic Dimension (mm)					CVD Grade
Shape	Type	L	IC	S	d	Re	CK6005	CK6015	CK6015S
	CNMG120404-KM	12	12.7	4.76	5.16	0.4	○	●	●
	CNMG120408-KM	12	12.7	4.76	5.16	0.8	○	●	●
	CNMG120412-KM	12	12.7	4.76	5.16	1.2	○	●	●
	CNMG160608-KM	12	15.875	6.35	6.35	0.8	○	●	●
	CNMG160612-KM	12	15.875	6.35	6.35	1.2	○	●	●
	CNMG160616-KM	12	15.875	6.35	6.35	1.6	○	●	●
	CNMG190608-KM	12	19.05	6.35	7.94	0.8	○	●	●
	CNMG190612-KM	12	19.05	6.35	7.94	1.2	○	●	●
	CNMG190616-KM	12	19.05	6.35	7.94	1.6	○	●	●
	CNMG190624-KM	12	19.05	6.35	7.94	2.4	○	●	●

	DNMG110404-KM	11	9.525	4.76	3.81	0.4	○	●	●
	DNMG110408-KM	11	9.525	4.76	3.81	0.8	○	●	●
	DNMG150404-KM	15	12.7	4.76	5.16	0.4	○	●	●
	DNMG150408-KM	15	12.7	4.76	5.16	0.8	○	●	●
	DNMG150412-KM	15	12.7	4.76	5.16	1.2	○	●	●
	DNMG150604-KM	15	12.7	6.35	5.16	0.4	○	●	●
	DNMG150608-KM	15	12.7	6.35	5.16	0.8	○	●	●
	DNMG150612-KM	15	12.7	6.35	5.16	1.2	○	●	●

	SNMG120404-KM	12	12.7	4.76	5.16	0.4	○	●	●
	SNMG120408-KM	12	12.7	4.76	5.16	0.8	○	●	●
	SNMG120412-KM	12	12.7	4.76	5.16	1.2	○	●	●
	SNMG160608-KM	16	16	6.35	6.35	0.8	○	●	●
	SNMG160612-KM	16	16	6.35	6.35	1.2	○	●	●
	SNMG160616-KM	16	16	6.35	6.35	0.6	○	●	●
	SNMG1906908-KM	19	19.05	6.35	7.94	0.8	○	●	●
	SNMG1906912-KM	19	19.05	6.35	7.94	1.2	○	●	●
	SNMG1906916-KM	19	19.05	6.35	7.94	1.6	○	●	●

	TNMG160404-KM	16	9.525	4.76	3.81	0.4	○	●	●
	TNMG160408-KM	16	9.525	4.76	3.81	0.8	○	●	●
	TNMG160412-KM	16	9.525	4.76	3.81	1.2	○	●	●
	TNMG220408-KM	22	12.7	4.76	5.16	0.8	○	●	●
	TNMG220412-KM	22	12.7	4.76	5.16	1.2	○	●	●
	TNMG220416-KM	22	12.7	4.76	5.16	1.6	○	●	●
	TNMG270412-KM	27	15.875	6.35	6.35	1.2	○	●	●
	TNMG270416-KM	27	15.875	6.35	6.35	1.6	○	●	●

	VNMG160404-KM	16	9.525	4.76	3.81	0.4	○	●	●
	VNMG160408-KM	16	9.525	4.76	3.81	0.8	○	●	●
	VNMG160412-KM	16	9.525	4.76	3.81	1.2	○	●	●

	WNMG080404-KM	8	12.7	4.76	5.16	0.4	○	●	●
	WNMG080408-KM	8	12.7	4.76	5.16	0.8	○	●	●
	WNMG080412-KM	8	12.7	4.76	5.16	1.2	○	●	●

	CNMG120404-CK	12	12.7	4.76	5.16	0.4	○	●	●
	CNMG120408-CK	12	12.7	4.76	5.16	0.8	○	●	●
	CNMG120412-CK	12	12.7	4.76	5.16	1.2	○	●	●
	CNMG160604-CK	16	15.875	6.35	6.35	0.4	○	●	●
	CNMG160608-CK	16	15.875	6.35	6.35	0.8	○	●	●
	CNMG160612-CK	16	15.875	6.35	6.35	1.2	○	●	●

	DNMG150404-CK	15	12.7	4.76	5.16	0.4	○	●	●
	DNMG150408-CK	15	12.7	4.76	5.16	0.8	○	●	●
	DNMG150412-CK	15	12.7	4.76	5.16	1.2	○	●	●

	SNMG120404-CK	12	12.7	4.76	5.16	0.4	○	●	●
	SNMG120408-CK	12	12.7	4.76	5.16	0.8	○	●	●
	SNMG120412-CK	12	12.7	4.76	5.16	1.2	○	●	●

	TNMG160404-CK	16	9.525	4.76	3.81	0.4	○	●	●
	TNMG160408-CK	16	9.525	4.76	3.81	0.8	○	●	●
	TNMG160412-CK	16	9.525	4.76	3.81	1.2	○	●	●

	VNMG160404-CK	16	9.525	4.76	3.81	0.4	○	●	●
	VNMG160408-CK	16	9.525	4.76	3.81	0.8	○	●	●
	VNMG160412-CK	16	9.525	4.76	3.81	1.2	○	●	●

	WNMG080404-CK	8	12.7	4.76	5.16	0.4	○	●	●
	WNMG080408-CK	8	12.7	4.76	5.16	0.8	○	●	●
	WNMG080412-CK	8	12.7	4.76	5.16	1.2	○	●	●

	CNMA120404	12	12.7	4.76	5.16	0.4	○	●	●
	CNMA120408	12	12.7	4.76	5.16	0.8	○	●	●
	CNMA120412	12	12.7	4.76	5.16	1.2	○	●	●
	CNMA160608	16	15.875	6.35	6.35	0.8	○	●	●
	CNMA160612	16	15.875	6.35	6.35	1.2	○	●	●
	CNMA160616	16	15.875	6.35	6.35	1.6	○	●	●
	CNMA190608	19	19.05	6.35	7.94	0.8	○	●	●
	CNMA190612	19	19.05	6.35	7.94	1.2	○	●	●
	CNMA190616	19	19.05	6.35	7.94	1.6	○	●	●

	DNMA150404	15	12.7	4.76	5.16	0.4	○	●	●
	DNMA150408	15	12.7	4.76	5.16	0.8	○	●	●
	DNMA150412	15	12.7	4.76	5.16	1.2	○	●	●

	SNMA120404	12	12.7	4.76	5.16	0.4	○	●	●
	SNMA120408	12	12.7	4.76	5.16	0.8	○	●	●
	SNMA120412	12	12.7	4.76	5.16	1.2	○	●	●
	SNMA150604	15	15.875	6.35	6.35	0.4	○	●	●
	SNMA150608	15	15.875	6.35	6.35	0.8	○	●	●
	SNMA150612	15	15.875	6.35	6.35	1.2	○	●	●
	SNMA190604	19	19.05	6.35	7.94	0.4	○	●	●
	SNMA190608	19	19.05	6.35	7.94	0.8	○	●	●
	SNMA190612	19	19.05	6.35	7.94	1.2	○	●	●
	SNMA190616	19	19.05	6.35	7.94	1.6	○	●	●

	TNMA160404	16	9.525	4.76	3.81	0.4	○	●	●
	TNMA160408	16	9.525	4.76	3.81	0.8	○	●	●
	TNMA160412	16	9.525	4.76	3.81	1.2	○	●	●
	TNMA220408	22	12.7	4.76	5.16	0.8	○	●	●
	TNMA220412	22	12.7	4.76	5.16	1.2	○	●	●
	TNMA220416	22	12.7	4.76	5.16	1.6	○	●	●

	VNMA160404	16	9.525	4.76	3.81	0.4	○	●	●
	VNMA160408	16	9.525	4.76	3.81	0.8	○	●	●
	VNMA160412	16	9.525	4.76	3.81	1.2	○	●	●

	WNMA080404	8	12.7	4.76	5.16	0.4	○	●	●
	WNMA080408	8	12.7	4.76	5.16	0.8	○	●	●
	WNMA080412	8	12.7	4.76	5.16	1.2	○	●	●

	CCMT060204-KM	6	6.35	2.38	2.8	0.4	○	●	●
	CCMT060208-KM	6	6.35	2.38	2.8	0.8	○	●	●
	CCMT09T304-KM	9	9.525	3.97	4.4	0.4	○	●	●
	CCMT09T308-KM	9	9.525	3.97	4.4	0.8	○	●	●
	CCMT120404-KM	12	12.7	4.76	5.16	0.4	○	●	●
	CCMT120408-KM	12	12.7	4.76	5.16	0.8	○	●	●
	CCMT120412-KM	12	12.7	4.76	5.16	1.2	○	●	●

	DCMT070204-KM	7	6.35	2.38	2.8	0.4	○	●	●
	DCMT070208-KM	7	6.35	2.38	2.8	0.8	○	●	●
	DCMT11T304-KM	11	9.525	3.97	4.4	0.4	○	●	●
	DCMT11T308-KM	11	9.525	3.97	4.4	0.8	○	●	●
	DCMT11T312-KM	11	9.525	3.97	4.4	1.2	○	●	●

	SCMT09T304-KM	9	9.525	3.97	4.4	0.4	○	●	●
	SCMT09T308-KM	9	9.525	3.97	4.4	0.8	○	●	●
	SCMT120404-KM	12	12.7	4.76	5.56	0.4	○	●	●
	SCMT120408-KM	12	12.7	4.76	5.56	0.8	○	●	●
	SCMT120412-KM	12	12.7	4.76	5.56	1.2	○	●	●

	TCMT110204-KM	11	6.35	2.38	2.8	0.4	○	●	●
	TCMT110208-KM	11	6.35	2.38	2.8	0.8	○	●	●
	TCMT16T304-KM	16	9.525	3.97	4.4	0.4	○	●	●
	TCMT16T308-KM	16	9.525	3.97	4.4	0.8	○	●	●

	VBMT160404-KM	16	9.525	4.76	4.4	0.4	○	●	●
	VBMT160408-KM	16	9.525	4.76	4.4	0.8	○	●	●
	VBMT160412-KM	16	9.525	4.76	4.4	1.2	○	●	●
	VCMT110304-KM	11	6.35	3.18	2.8	0.4	○	●	●
	VCMT110308-KM	11	6.35	3.18	2.8	0.8	○	●	●
