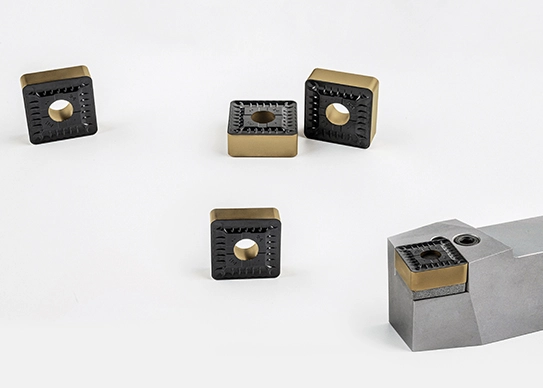

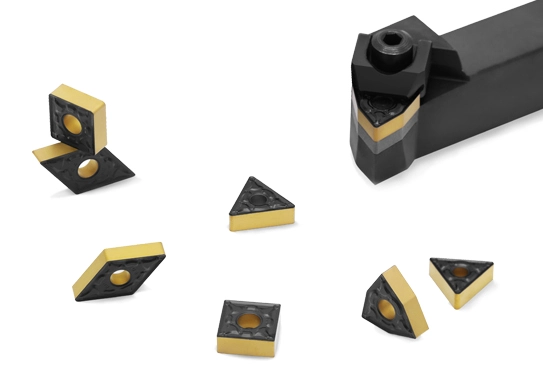

Our turning inserts for steel are engineered to handle the demands of steel machining with high wear resistance and thermal stability. Designed for efficient chip control and surface finish, these inserts are ideal for a variety of steel types, ensuring excellent cutting performance and prolonged tool life even in the most challenging conditions.
CYC's Turning Inserts for Steel are designed with several key features to enhance your machining process. Firstly, they are made from high-grade materials, ensuring exceptional durability and heat resistance. This allows for smooth, efficient machining even under high-speed operations. Secondly, they are specifically engineered for steel, providing superior cutting performance and a longer tool life. Thirdly, they come in a variety of shapes and sizes, catering to a wide range of steel machining needs. Lastly, these inserts offer a flawless finish, reducing the need for secondary operations. With CYC's Turning Inserts for Steel, you can expect precision, efficiency, and quality in every cut.
Shape | Type | Basic Dimension (mm) | CVD Grade | |||||||
L | IC | S | d | Re | CP8015 | CP8025 | CP8025S | CP8035 | ||

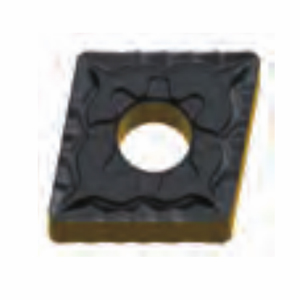

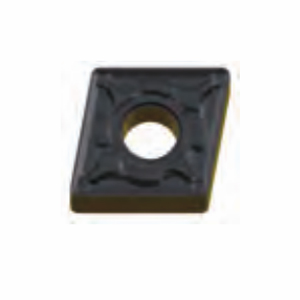

CNMG120404-PM | 12 | 12.7 | 4.76 | 5.16 | 0.4 | ○ | ● | ● | ○ | |
CNMG120408-PM | 12 | 12.7 | 4.76 | 5.16 | 0.8 | ○ | ● | ● | ○ | |
CNMG120412-PM | 12 | 12.7 | 4.76 | 5.16 | 1.2 | ○ | ● | ● | ○ | |
CNMG120416-PM | 12 | 12.7 | 4.76 | 5.16 | 1.6 | ○ | ● | ● | ○ | |
CNMG160608-PM | 16 | 15.875 | 6.35 | 6.35 | 0.8 | ○ | ● | ● | ○ | |
CNMG160612-PM | 16 | 15.875 | 6.35 | 6.35 | 1.2 | ○ | ● | ● | ○ | |
CNMG160616-PM | 16 | 15.875 | 6.35 | 6.35 | 1.6 | ○ | ● | ● | ○ | |
CNMG190608-PM | 19 | 19.05 | 6.35 | 6.35 | 0.8 | ○ | ● | ● | ○ | |
CNMG190612-PM | 19 | 19.05 | 6.35 | 6.35 | 1.2 | ○ | ● | ● | ○ | |
CNMG190616-PM | 19 | 19.05 | 6.35 | 6.35 | 1.6 | ○ | ● | ● | ○ | |
CNMG190624-PM | 19 | 19.05 | 6.35 | 6.35 | 2.4 | ○ | ● | ● | ○ | |

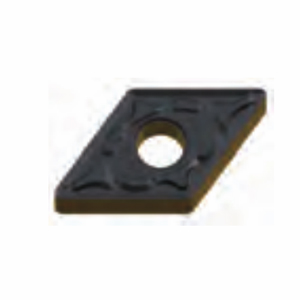

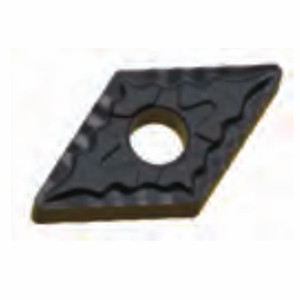

DNMG110404-PM | 11 | 9.525 | 4.76 | 3.81 | 0.4 | ○ | ● | ● | ○ | |
DNMG110408-PM | 11 | 9.525 | 4.76 | 3.81 | 0.8 | ○ | ● | ● | ○ | |
DNMG150404-PM | 15 | 12.7 | 4.76 | 5.16 | 0.4 | ○ | ● | ● | ○ | |
DNMG150408-PM | 15 | 12.7 | 4.76 | 5.16 | 0.8 | ○ | ● | ● | ○ | |
DNMG150604-PM | 15 | 12.7 | 6.35 | 5.16 | 0.4 | ○ | ● | ● | ○ | |
DNMG150608-PM | 15 | 12.7 | 6.35 | 5.16 | 0.8 | ○ | ● | ● | ○ | |
DNMG150612-PM | 15 | 12.7 | 6.35 | 5.16 | 1.2 | ○ | ● | ● | ○ | |

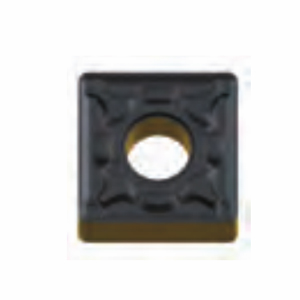

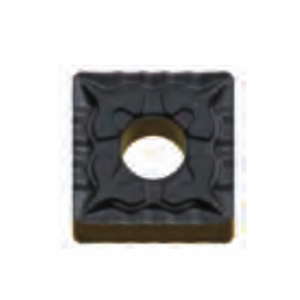

SNMG120404-PM | 12 | 12.7 | 4.76 | 5.16 | 0.4 | ○ | ● | ● | ○ | |
SNMG120408-PM | 12 | 12.7 | 4.76 | 5.16 | 0.8 | ○ | ● | ● | ○ | |
SNMG120412-PM | 12 | 12.7 | 4.76 | 5.16 | 1.2 | ○ | ● | ● | ○ | |
SNMG120416-PM | 12 | 12.7 | 4.76 | 5.16 | 1.6 | ○ | ● | ● | ○ | |
SNMG150612-PM | 15 | 15.875 | 6.35 | 6.35 | 1.2 | ○ | ● | ● | ○ | |
SNMG190612-PM | 19 | 19.05 | 6.35 | 7.94 | 1.2 | ○ | ● | ● | ○ | |
SNMG190616-PM | 19 | 19.05 | 6.35 | 7.94 | 1.6 | ○ | ● | ● | ○ | |

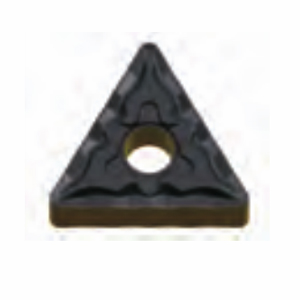

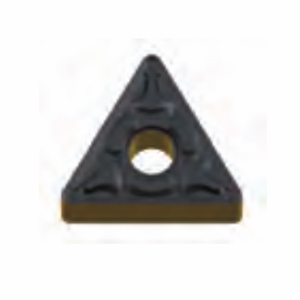

TNMG160404-PM | 16 | 9.525 | 4.76 | 3.81 | 0.4 | ○ | ● | ● | ○ | |
TNMG160408-PM | 16 | 9.525 | 4.76 | 3.81 | 0.8 | ○ | ● | ● | ○ | |
TNMG160412-PM | 16 | 9.525 | 4.76 | 3.81 | 1.2 | ○ | ● | ● | ○ | |
TNMG220408-PM | 22 | 12.7 | 4.76 | 5.16 | 0.8 | ○ | ● | ● | ○ | |
TNMG220412-PM | 22 | 12.7 | 4.76 | 5.16 | 1.2 | ○ | ● | ● | ○ | |
TNMG220416-PM | 22 | 12.7 | 4.76 | 5.16 | 1.6 | ○ | ● | ● | ○ | |

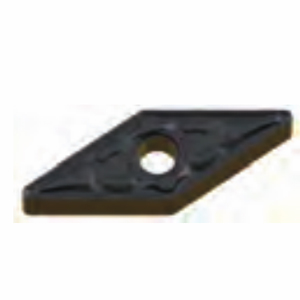

VNMG110404-PM | 16 | 6.35 | 4.76 | 2.26 | 0.4 | ○ | ● | ● | ○ | |
VNMG110408-PM | 16 | 6.35 | 4.76 | 2.26 | 0.8 | ○ | ● | ● | ○ | |
VNMG160404-PM | 16 | 9.525 | 4.76 | 3.81 | 0.4 | ○ | ● | ● | ○ | |
VNMG160408-PM | 16 | 9.525 | 4.76 | 3.81 | 0.8 | ○ | ● | ● | ○ | |
VNMG160412-PM | 16 | 9.525 | 4.76 | 3.81 | 1.2 | ○ | ● | ● | ○ | |

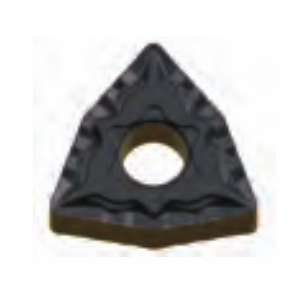

WNMGO60408-PM | 6 | 9.525 | 4.76 | 3.81 | 0.8 | ○ | ● | ● | ○ | |
WNMG060412-PM | 6 | 9.525 | 4.76 | 3.81 | 1.2 | ○ | ● | ● | ○ | |
WNMG080404-PM | 8 | 12.7 | 4.76 | 5.16 | 0.4 | ○ | ● | ● | ○ | |
WNMGO80408-PM | 8 | 12.7 | 4.76 | 5.16 | 0.8 | ○ | ● | ● | ○ | |
WNMG080412-PM | 8 | 12.7 | 4.76 | 5.16 | 1.2 | ○ | ● | ● | ○ | |
WNMGO80416-PM | 8 | 12.7 | 4.76 | 5.16 | 1.6 | ○ | ● | ● | ○ | |
CNMG120404-PF | 12 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ○ | ● | ○ | |
CNMG120408-PF | 12 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ○ | ● | ○ | |
CNMG160604-PF | 16 | 15.875 | 6.35 | 6.35 | 0.4 | ● | ○ | ● | ○ | |
CNMG160608-PF | 16 | 15.875 | 6.35 | 6.35 | 0.8 | ● | ○ | ● | ○ | |
CNMG190604-PF | 19 | 19.05 | 6.35 | 6.35 | 0.4 | ● | ○ | ● | ○ | |
CNMG190608-PF | 19 | 19.05 | 6.35 | 6.35 | 0.8 | ● | ○ | ● | ○ | |
DNMG150404-PF | 15 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ○ | ● | ○ | |
DNMG150408-PF | 15 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ○ | ● | ○ | |
DNMG150604-PF | 15 | 12.7 | 6.35 | 5.16 | 0.4 | ● | ○ | ● | ○ | |
DNMG150608-PF | 15 | 12.7 | 6.35 | 5.16 | 0.8 | ● | ○ | ● | ○ | |
DNMG150612-PF | 15 | 12.7 | 6.35 | 5.16 | 1.2 | ● | ○ | ● | ○ | |
SNMG120404-PF | 12 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ○ | ● | ○ | |
SNMG120408-PF | 12 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ○ | ● | ○ | |
SNMG150608-PF | 15 | 15.875 | 6.35 | 6.35 | 0.8 | ● | ○ | ● | ○ | |
SNMG150612-PF | 15 | 15.875 | 6.35 | 6.35 | 1.2 | ● | ○ | ● | ○ | |
SNMG190604-PF | 19 | 19.05 | 6.35 | 7.94 | 0.4 | ● | ○ | ● | ○ | |
SNMG190608-PF | 19 | 19.05 | 6.35 | 7.94 | 0.8 | ● | ○ | ● | ○ | |
TNMG160404-PF | 16 | 9.525 | 4.76 | 3.81 | 0.4 | ● | ○ | ● | ○ | |
TNMG160408-PF | 16 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ○ | ● | ○ | |
TNMG220404-PF | 22 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ○ | ● | ○ | |
TNMG220408-PF | 22 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ○ | ● | ○ | |
VNMG160404-PF | 16 | 9.525 | 4.76 | 3.81 | 0.4 | ● | ○ | ● | ○ | |
VNMG160408-PF | 16 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ○ | ● | ○ | |
WNMGO80404-PF | 8 | 12.7 | 4.76 | 5.16 | 0.4 | ● | ○ | ● | ○ | |
WNMG080408-PF | 8 | 12.7 | 4.76 | 5.16 | 0.8 | ● | ○ | ● | ○ |
Shape | Type | Basic Dimension (mm) | CVD Grade | |||||
L | IC | S | d | Re | CP8025S | CP8025H | ||

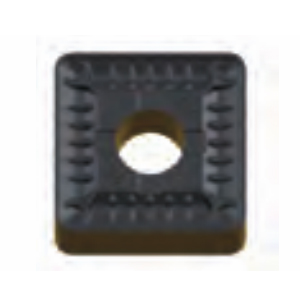

SNMM250924-PH | 25 | 25.4 | 9.52 | 9.12 | 2.4 | ● | ● |
Shape | Type | Basic Dimension (mm) | CVD Grade | |||||||
L | IC | S | d | Re | CP8015 | CP8025 | CP8025S | CP8035 | ||

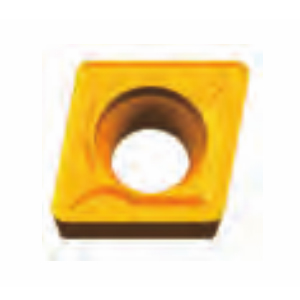

CCMT060204-HF | 6 | 6.35 | 2.38 | 2.8 | 0.4 | ● | ○ | ○ | ○ | |
CCMT060208-HF | 6 | 6.35 | 2.38 | 2.8 | 0.8 | ● | ○ | ○ | ○ | |
CCMT09T304-HF | 9 | 9.525 | 3.97 | 4.4 | 0.4 | ● | ○ | ○ | ○ | |
CCMT09T308-HF | 9 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ○ | ○ | ○ | |

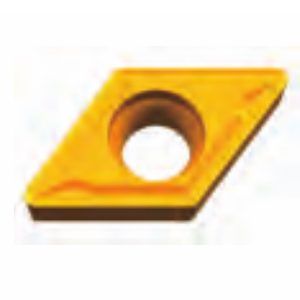

DCMT070204-HF | 7 | 6.35 | 2.38 | 2.8 | 0.4 | ● | ○ | ○ | ○ | |
DCMT070208-HF | 7 | 6.35 | 2.38 | 2.8 | 0.8 | ● | ○ | ○ | ○ | |
DCMT11T304-HF | 11 | 9.525 | 3.97 | 4.4 | 0.4 | ● | ○ | ○ | ○ | |
DCMT11T308-HF | 11 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ○ | ○ | ○ | |

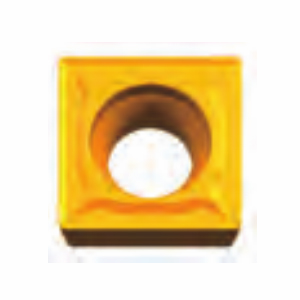

SCMT09T304-HF | 9 | 9.525 | 3.97 | 4.4 | 0.4 | ● | ○ | ○ | ○ | |
SCMT09T308-HF | 9 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ○ | ○ | ○ | |
SCMT120404-HF | 12 | 12.7 | 4.76 | 5.56 | 0.4 | ● | ○ | ○ | ○ | |
SCMT120408-HF | 12 | 12.7 | 4.76 | 5.56 | 0.8 | ● | ○ | ○ | ○ | |
SCMT120412-HF | 12 | 12.7 | 4.76 | 5.56 | 1.2 | ● | ○ | ○ | ○ | |

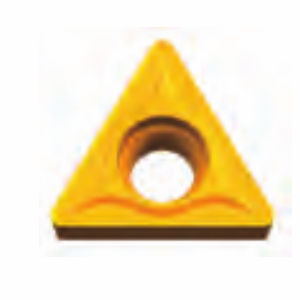

TCMT110204-HF | 11 | 6.35 | 2.38 | 2.8 | 0.4 | ● | ○ | ○ | ○ | |
TCMT110208-HF | 11 | 6.35 | 2.38 | 2.8 | 0.8 | ● | ○ | ○ | ○ | |
TCMT16T304-HF | 16 | 9.525 | 3.97 | 4.4 | 0.4 | ● | ○ | ○ | ○ | |
TCMT16T308-HF | 16 | 9.525 | 3.97 | 4.4 | 0.8 | ● | ○ | ○ | ○ |
●Running Stock
○Make-to-order
