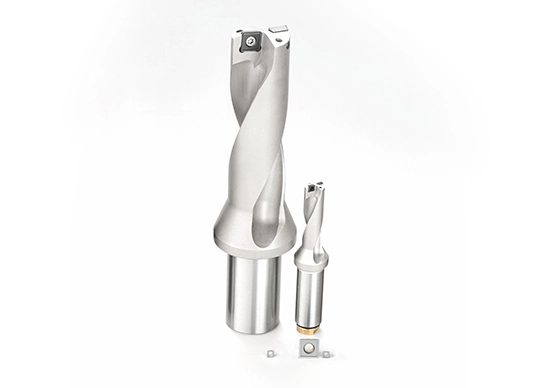

Our U Drill inserts are designed for high-speed drilling, providing exceptional chip evacuation and wear resistance. CYCT's U Drill inserts deliver precision and reliability, ensuring fast and efficient drilling performance across a wide range of materials.

Specification of U Drill Inserts



U Drill Inserts

 

Shape	Type	Basic Dimension (mm)					CVD Grade
Shape	Type	L	IC	S	d	Re	CA5110	CA5120	CM7115A

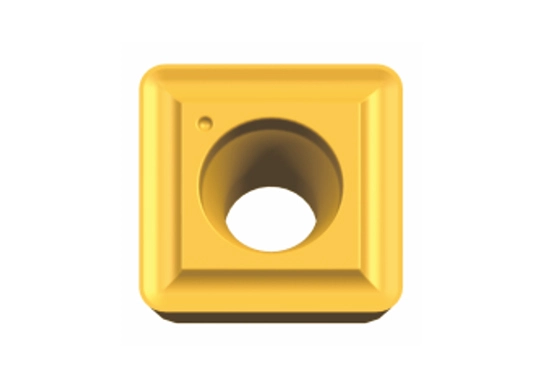

	SPMG050204-DG	5	5	2.38	2.2	0.4	●	●	○
	SPMG060204-DG	6	6	2.38	2.6	0.4	●	●	○
	SPMG07T308-DG	7.94	7.94	3.97	2.8	0.8	●	●	○
	SPMG090408-DG	9.8	9.8	4.3	4.2	0.8	●	●	○
	SPMG110408-DG	11.5	11.5	4.76	4.4	0.8	●	●	○
	SPMG140512-DG	14.3	14.3	5.2	5.75	1.2	●	●	○

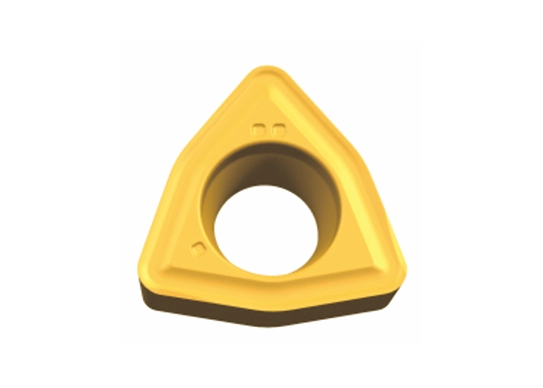

	WCMX030208	3	5.56	2.38	2.8	0.8	●	●	○
	WCMX040208	4	6.35	2.38	3.1	0.8	●	●	○
	WCMX050308	5	7.94	3.18	3.2	0.8	●	●	○
	WCMX06T308	6	9.525	3.97	3	0.8	●	●	○
	WCMX080412	8	12.7	4.76	4.4	1.2	●	●	○
